Infrared Sensing Range:50 feet (15 meters)
Response Time:Less than 0.5 seconds
Operating Temperature:-40°F to 185°F (-40°C to 85°C)
Power Consumption:Less than 2 watts
Operating Voltage:12V DC
Alarm Output:Relay contact with 12mA max current
Dimensions:8 inches x 4 inches x 2 inches (203mm x 101.6mm x 50.8mm)
Weight:0.4 pounds (180g)

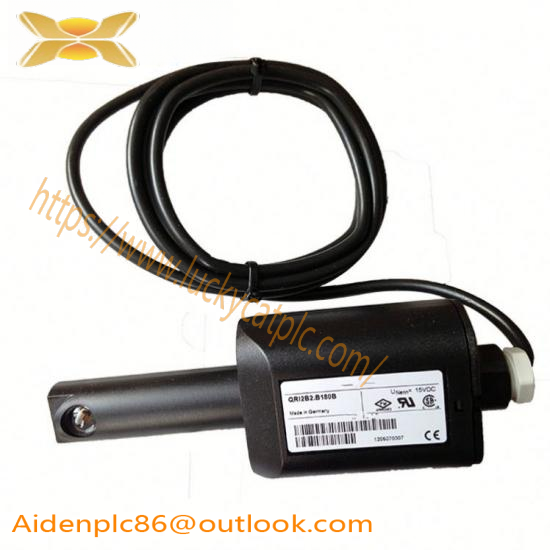

Introducing the SIEMENS QRI2B2.B180B1 Infrared Flame Detector, a sophisticated solution designed for industrial applications where reliable flame detection is critical. This detector leverages cutting-edge infrared technology to provide accurate and immediate response to potential fire hazards.
Equipped with a wide operational temperature range from -40°C to +70°C (-40°F to +158°F), this detector ensures reliable performance in various industrial environments, including those with extreme temperatures.
With a detection distance of up to 18 meters (60 feet) under optimal conditions, it is capable of monitoring large areas for any signs of flame, offering enhanced safety and peace of mind.
Featuring 2 Form-C, normally open relay outputs, the detector allows for seamless integration into existing safety systems, enabling quick and efficient action upon detection of flames.
Operating on a stable 24V DC supply, the device consumes a maximum of 60mA, making it energy-efficient and suitable for use in power-sensitive environments. Its compact design supports surface mounting, ensuring easy installation without compromising space.
The QRI2B2.B180B1 is rated IP65 (NEMA 4X), providing robust protection against dust and water ingress, ensuring it performs reliably even in harsh industrial conditions.
