Operating Temperature Range:-40°C to 70°C (-40°F to 158°F)
Relative Humidity Limit:5% to 95% non-condensing
Power Dissipation:50W
Input Supply Voltage:120VAC / 240VAC, 1-Phase, 50-60Hz
Input Current:18A RMS
Output Voltage:120VAC / 240VAC, 3-Phase, programmable frequency 0-400Hz
Continuous Output Current:10A
Peak Output Current:30A
Bus Capacitance:1880 µF
Bus Overvoltage Protection:400VDC
Energy Absorption Capability:51J at 230VAC
Auxiliary Logic Supply Voltage:5V
Dimensions:198.12 x 144.27 x 98.1 mm
Weight:2.1kg (4.6lbs)

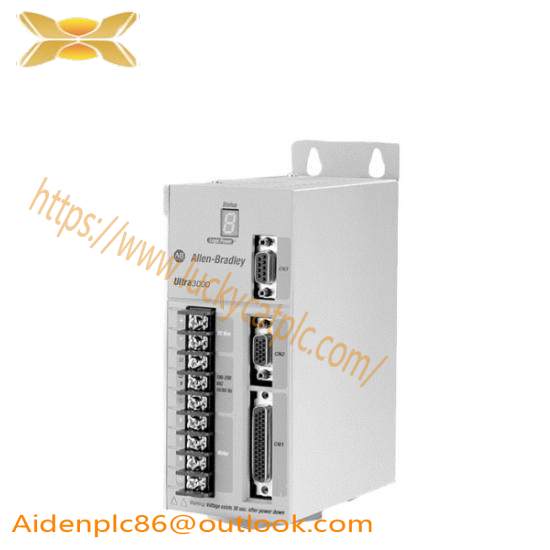

The Allen-Bradley 2098-DSD-020X is a state-of-the-art digital servo drive engineered for unparalleled performance in heavy-duty industrial settings. With a versatile design, this drive effortlessly handles a wide range of servomotor integration, ensuring precise motion control in your automation projects.
Featuring a robust Proportional+Integral+Derivative (PID) velocity regulator with a high update rate of 250 µs, the 2098-DSD-020X delivers unmatched speed and accuracy. Its Digital PID with feed-forward capability further enhances positioning capabilities, making it ideal for complex applications requiring high precision.
Equipped with 8 optically-isolated digital inputs and 4 optically-isolated N.O. relay outputs, the drive provides a comprehensive control solution. The relay outputs can handle up to 30V DC with a maximum current of 1A, offering flexibility in connecting various peripherals.
The 2098-DSD-020X is built to withstand rigorous industrial environments, boasting an impressive working temperature range of 40-70°C and a relative humidity limit of 5-95% without condensation. This ensures reliable operation even in challenging conditions.
For added safety and efficiency, the drive is equipped with (LPJ-20SP) Class J and (FNQ-R-20) Class CC fuses, along with a 5V Auxiliary Logic supply. Its energy absorption capability of 51 Joules protects against overvoltages, safeguarding your system and ensuring uninterrupted operation.
