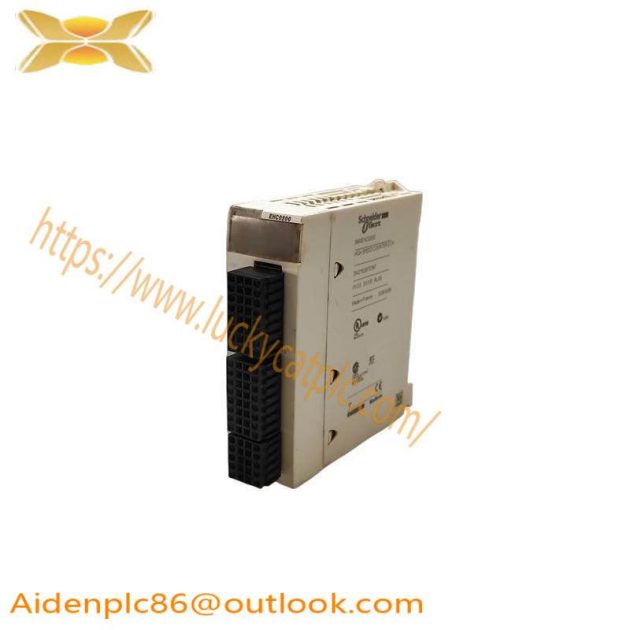

Extended Product Type:High Speed Counter Module
Product ID:BMXEHC0200
Schneider Type Designation:Counter Module
Product Range:Modicon M340 Automation Platform
Number of Channels:2
Number of Inputs:6
Input Voltage:24 V DC Type 3
Number of Outputs:2
Output Voltage:24 V DC
Electrical Connection:1 x 10-pin connector for wiring, 1 x 16-pin connector for sensor wiring
Auxiliary Input & Sensor Power Supply:Integrated
The Schneider BMXEHC0200 is a precision high-speed counter module designed for advanced timing and counting tasks within the Modicon M340 automation system. It features two independent counters capable of handling up to 6 inputs each, providing versatility and flexibility for a wide range of industrial applications.
With a robust design and precise 24 V DC power supply, this module ensures accurate and reliable operation even under harsh industrial conditions. Its modular architecture integrates seamlessly with other components in the Modicon M340 platform, offering a scalable solution for complex control systems.
Each channel of the BMXEHC0200 can operate at speeds up to 1 MHz, making it ideal for monitoring and controlling processes that require high-speed response times. The module supports both rising and falling edge detection, enhancing its adaptability to various counting scenarios.
The included auxiliary input and sensor power supply connectors simplify installation and maintenance, reducing downtime and improving operational efficiency. This module is designed to withstand extreme temperature ranges from -40°C to +70°C, ensuring continuous performance in challenging environments.
Engineered for durability and precision, the Schneider BMXEHC0200 high-speed counter module is an essential component for manufacturers seeking enhanced control over their production lines, improving productivity and quality assurance in their operations.
