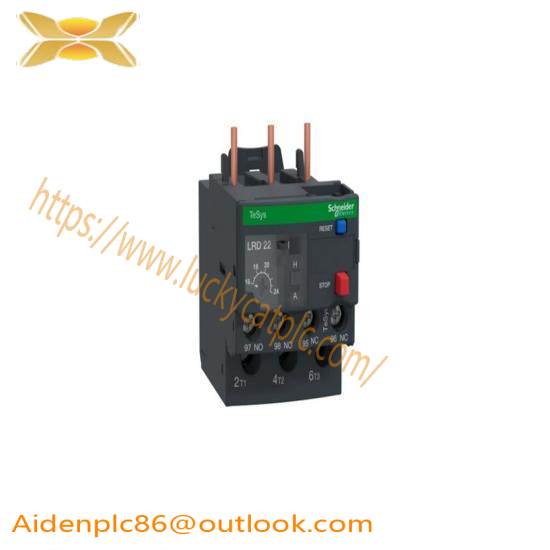

Product Type:Overload Relay
Product ID:LRD22
Schneider Type Designation:Extended
Range of Product:TeSys
Relay Application:Motor Protection
Thermal Protection Adjustment Range:16…24 A
Rated Operational Voltage:690 V AC
Net Weight:0.124 kg
Engineered for durability and reliability, the Schneider Electric LRD22 Overload Relay is an essential component in industrial applications. Its compact design ensures efficient space utilization while providing robust protection against overloading conditions. Suitable for use in a wide range of temperatures (-40°C to +70°C), this relay operates seamlessly in diverse industrial environments.
With a current rating of 6A, the LRD22 is capable of handling substantial electrical loads without compromising safety or performance. Its overload protection feature safeguards circuits from damage caused by excessive current flow, ensuring system integrity and preventing potential hazards.
Featuring a contact configuration of 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, this relay offers versatile connectivity options for various control circuit requirements. Its IP20 protection class ensures dust resistance and basic splash protection, making it suitable for indoor industrial settings.
The relay is engineered to withstand up to 100,000 operations, demonstrating its exceptional mechanical life and reliability over extended periods of operation. This makes it a cost-effective solution for long-term industrial applications where downtime must be minimized.
The Schneider Electric LRD22 Overload Relay is designed with ease of installation and maintenance in mind, incorporating standard mounting dimensions compatible with industry-standard panels. Its user-friendly interface facilitates quick setup and adjustment, enhancing operational efficiency.
