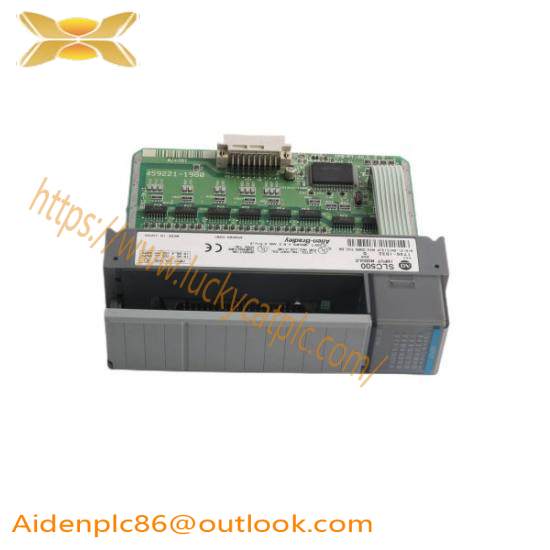

Rockwell Automation 1746-IB32/D SLC 500 Analog Input Module

Type:Digital Input Module

Model Number:1746-IB32/D

Manufacturer:Allen Bradley

Channels:32

Voltage Range:5 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load Capacity:1 MA

Continuous Current per Output:0.25 A at 60 °C

Continuous Current per Module:8 A at 60 °C

Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC, Processor: SLC 500

Temperature Rating:0 – 60 °C

Environmental Conditions:5 – 95% RH

Enclosure:Open Type

Mounting:Chassis

Cooling Method:Convection

    Experience unparalleled precision in industrial control with the Allen Bradley 1746-IB32/D SLC 500 Analog Input Module. This module is engineered for critical applications where accuracy and reliability are paramount.

    Featuring a robust design capable of handling a wide range of voltage inputs (-20 to +20 VDC) with exceptional overvoltage protection (7.5 VAC RMS), this module ensures stable performance even under demanding conditions.

    With an open-type enclosure and a temperature rating suitable for industrial environments (0°C to 60°C), the Allen Bradley 1746-IB32/D is designed to withstand harsh operating conditions while maintaining its operational efficiency.

    The 1746-IB32/D offers high-resolution input capabilities (1 LSB) with a full-scale voltage rating of 10 VDC, making it ideal for applications requiring detailed data acquisition. Its 32-channel capacity allows for comprehensive monitoring and control of industrial processes.

    Ease of integration and mounting on panels, combined with efficient cooling through convection, ensures seamless installation and maintenance. The backplane current draw at 5 V is 55 mA, and at 24 V, it’s 85 mA, providing ample power for smooth operation without strain on the system.
