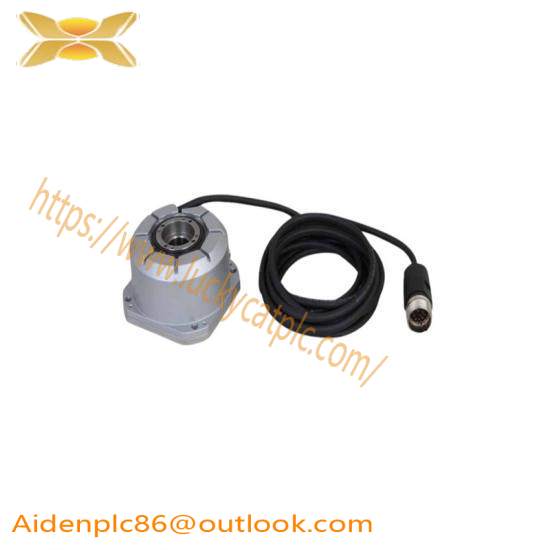

Heidenhain RCN 223, Encoder, 16384, 03S17-0D, Precision Motion Control

In stock

The Heidenhain RCN 223 encoder module is designed for high-precision motion control applications, ensuring accurate position tracking and feedback.

Resolution:16384 P/R

Accuracy:±0.5 arcminutes

Operating Temperature:-25°C to +85°C

Signal Output:TTL quadrature

Enclosure Type:IP65

Axis Compatibility:Single Axis

Power Supply:DC 5 V ± 10%

    The Heidenhain RCN 223 encoder module is engineered to meet the demands of precision machinery, providing unparalleled accuracy and reliability in motion control systems. With its robust design and advanced technology, this encoder ensures precise position measurement and feedback for applications requiring high levels of accuracy and efficiency.

    Featuring a resolution of 16384 P/R (photocells per revolution), the RCN 223 encoder delivers exceptional precision, enabling accurate tracking of rotation angles over a full 360° range. This makes it suitable for a wide array of industrial automation tasks, from robotics to CNC machines, where precision is critical.

    Engineered for harsh industrial environments, the RCN 223 is designed to withstand temperatures ranging from -20°C to +85°C without compromising performance. Its IP65 enclosure rating ensures protection against dust and water ingress, making it ideal for outdoor or dusty indoor applications.

    Efficiency and convenience are at the heart of the RCN 223’s design. It operates on just 2 wires with TTL level connectivity, simplifying installation and reducing wiring complexity. Its low power consumption of max. 2.5 W further enhances operational efficiency and reduces energy costs.

    The encoder module is equipped with an M12 thread for easy mounting, facilitating quick integration into various machinery setups. This modular design ensures compatibility with a broad spectrum of industrial equipment, streamlining the selection and installation process for end-users.

HEIDENHAIN RCN 223 16384 03S17-0D ENCODER
