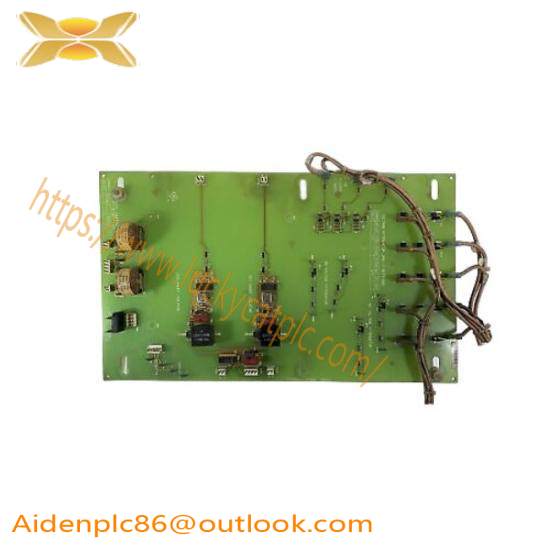

General Electric DS200SHVIG1BGD High Voltage Interface Board – Power Efficiency in Turbine Control Systems

Manufacturer:General Electric

Model:DS200SHVIG1BGD

Series:Mark V

Functional Description:SCR High Voltage Interface Board

Instruction Manual:GEI-100160

Functional Acronym:SHVI

PCB Coating:Normal Coating

Functional Revision:1B, 2G

Artwork Revision😀

Technical Specifications:Compatible with a variety of GE brand drives, this board efficiently converts voltage signals from -500mV to 500mV into differential frequencies, ensuring reliable operation within the Mark V Series.

    Crafted specifically for the advanced Mark V Turbine Control System series, the DS200SHVIG1BGD High Voltage Interface Board from General Electric ensures reliable and efficient signal communication, crucial for the operation of complex industrial machinery.

    This high-performance board seamlessly integrates into the SCR bridge and power supply, converting input voltages into digestible signals for the control system, enhancing operational accuracy and reducing maintenance needs.

    Utilizing state-of-the-art technology, the DS200SHVIG1BGD boasts a robust design with enhanced thermal management capabilities, guaranteeing stable performance across a wide range of environmental conditions.

    Designed with precision, this interface board supports a broad spectrum of voltage signals, making it versatile for various industrial applications, including power generation, petrochemical processing, and manufacturing.

    Equipped with RoHS compliance, the DS200SHVIG1BGD adheres to stringent environmental regulations, ensuring sustainable operations without compromising on performance or reliability.
