Weight:4.8 kg
Voltage Input:Burden less than 0.025 VA at 120 V
Source VT:2 to 600 kV / 60 to 120 V
Number of Logic Inputs:16
Manufacturer:General Electric Multilin
Fuse Current Rating:3.15 A
Display Type:Enhanced LCD
Dimensions:9″H, 7 ⅛”D, 7″W
Control Power Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz
Total Harmonic Distortion (THD):N/A (Not specified)

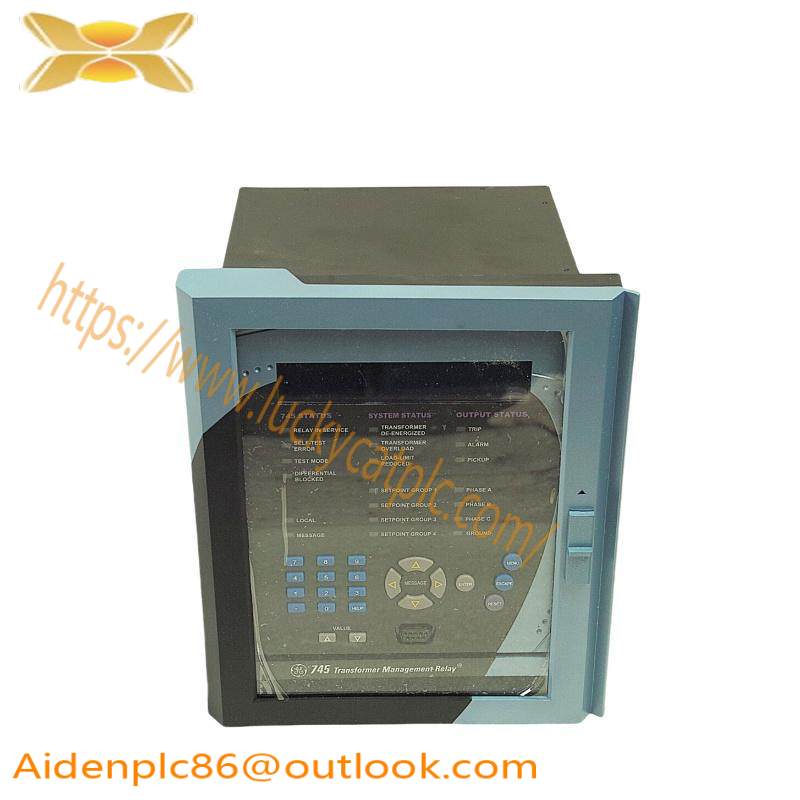

This advanced transformer management relay from General Electric Multilin offers unparalleled adaptability and reliability for industrial settings. With its high-resolution, user-friendly interface, it ensures seamless integration into existing systems, enhancing operational efficiency.
The 745-W2-P5-G5-HI-T model is equipped with Adaptive Dynamic CT Ratio Mismatch Correction, Overexcitation Protection, Transformer Overload Protection, and Frequency Rate-of-Change Detection. These features work together to optimize performance, extend the lifespan of transformer elements, and prevent potential failures.
The relay’s enhanced LCD display provides quick access to critical data and system status, complemented by a robust keypad for manual adjustments. Its compact design fits perfectly in standard 19″ panels, facilitating easy installation and maintenance.
With a focus on safety and durability, the GE SR745 CASE: 745-W2-P5-G5-HI-T is built using high-quality materials and undergoes rigorous testing to ensure it withstands the harshest industrial environments. It is a trusted solution for transformer protection, offering peace of mind to operators and maintenance teams alike.
For optimal performance, the relay requires careful consideration of environmental factors, such as temperature and humidity levels, and should be installed according to specific guidelines provided by General Electric Multilin. This ensures not only the longevity of the relay itself but also the overall reliability of the electrical system it serves.
