Board Type:Gate Pulse Amplifier Board
Configurable Hardware:5 on-board jumpers
Discontinued/Obsolete/Legacy:Yes, contact AX Control for available surplus
Function Interface:Control to Power Bridge
Acronym:EGPA
Instruction Manual Number:GEI-100461 (GEH-6632 Series Manual)
Model Number:IS200EGPAG1BCA
Notable Components:On-board Green and Red LED Indicators
OEM / Manufacturer:General Electric, GE Industrial Systems
Repairable:Yes
Series / Product Line:EX2100 Excitation Control – Exciter System
Weight:1lb 9oz

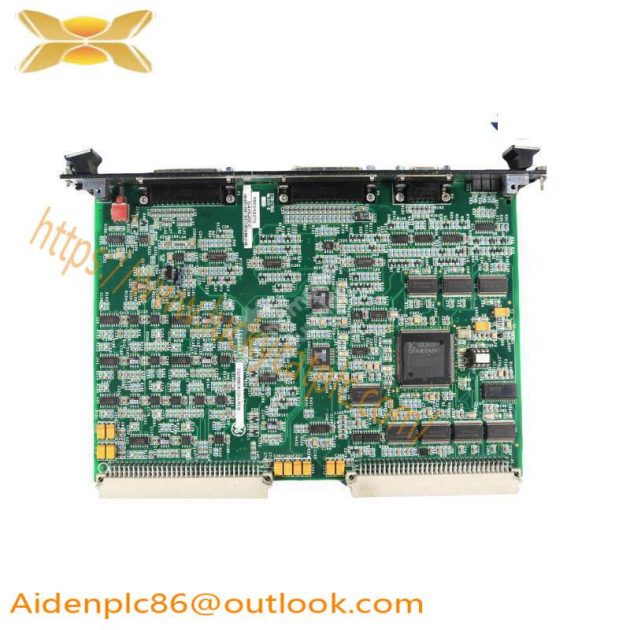

The GE IS200EGPAG1BCA is a high-performance gate pulse amplifier board designed by General Electric specifically for excitation control systems.
This board plays a crucial role in controlling the power bridge within these systems, amplifying gate pulse signals to drive SCRs (Silicon Controlled Rectifiers).
Its design incorporates five on-board jumpers for configurable hardware settings, enhancing its adaptability to various applications.
The board also features on-board green and red LED indicators, providing clear visual feedback on system status.
With precise control over SCRs and the ability to monitor conduction feedback, airflow, and temperature, this amplifier ensures reliable and efficient operation in demanding industrial environments.
Whether used in power generation or other high-stakes industries, the GE IS200EGPAG1BCA is a robust and dependable solution for excitation control systems.
