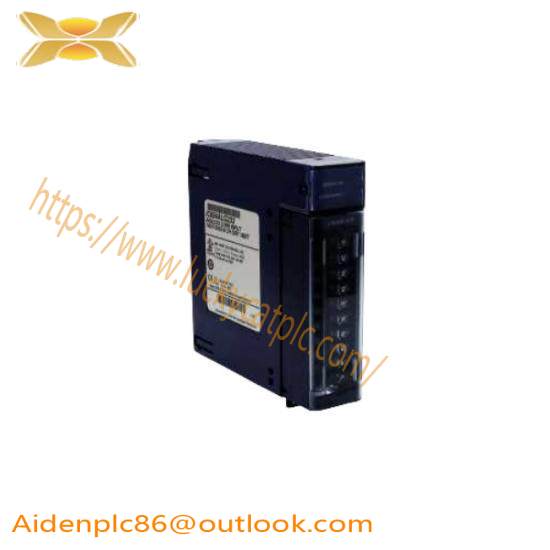

GE IC694ALG233 Analog Input Module: High Precision Data Acquisition

Series:PACSystem RX3i

Analog Input Channels:8

Analog Input Range:0-20 mA, 4-20 mA

Sampling Rate:500 Hz

Power Supply Compatibility:18-60 VDC

Operating Temperature:-40°C to +70°C

Communication Interface:RS485

Dimensions:50 mm x 50 mm x 100 mm

Weight:0.2 kg

    The GE IC694ALG233 Analog Input Module is engineered to deliver high performance and reliability in demanding industrial environments. Its robust design ensures accurate data acquisition, crucial for process control and automation applications.

    Each channel can measure voltages up to 10VDC or currents up to 20mA, providing versatility for various sensor connections. This makes it suitable for monitoring and controlling processes in sectors like manufacturing, power generation, and process industries.

    Featuring a sampling rate of up to 10 samples per second per channel, the IC694ALG233 ensures real-time data capture, enabling precise adjustments and optimal system performance.

    With an accuracy of ±0.2% ±1 digit, this module guarantees dependable measurements, even under fluctuating environmental conditions. Its wide temperature range (-40°C to +85°C) allows operation in extreme environments without compromising performance.

    For storage, the module withstands temperatures from -55°C to +125°C, ensuring it can be transported safely between locations without damage. Its low power consumption of approximately 50mA at 24VDC also contributes to energy efficiency.
