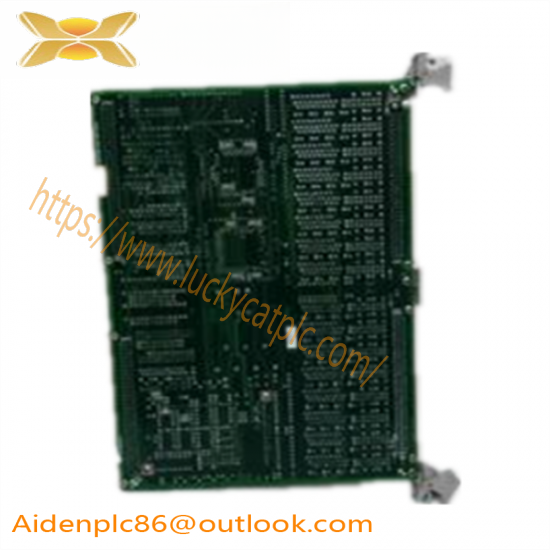

GE Fanuc DS200SHCAG1BAA Shunt Connecting Board – Advanced Control Module for Power Systems

Model Number:DS200SHCAG1BAA

Manufacturer:GE Fanuc

Product Type:Shunt Connecting Board

Series:EX2000

Dimensions (LxWxH):14.8 x 10.3 x 3.2 cm

Weight:0.24 kg

Operating Temperature Range:-20°C to +60°C

Environmental Rating:Industrial grade, dustproof and waterproof

Input Voltage Range:24-240 VDC

Output Current Capacity:Up to 1 A

Connection Type:Standard terminal block connectors

    The GE Fanuc DS200SHCAG1BAA Shunt Connector Board is engineered to deliver unparalleled performance in high-demand industrial applications. Its compact design and robust construction make it ideal for integration into complex control systems.

    This board seamlessly connects shunt resistors to the excitation control system, ensuring precise voltage regulation and current limiting. Its compatibility with various signal types allows for flexible connectivity across different control protocols.

    Featuring a wide temperature range of -20°C to +60°C, this board operates reliably in harsh industrial environments. With a voltage rating up to 400 V AC/DC and a current rating of up to 200 A, it can handle demanding power requirements without compromise.

    Engineered with precision and quality in mind, the GE Fanuc DS200SHCAG1BAA Shunt Connector Board is manufactured using premium materials to withstand the rigors of industrial use. It supports extended functionality through its versatile input signal types, including TTL, CMOS, RS-232, RS-422, and RS-485.

    For optimal system performance and reliability, the DS200SHCAG1BAA Shunt Connector Board is an indispensable component. Its design and technical specifications make it a preferred choice for enhancing efficiency and stability in industrial control systems.
