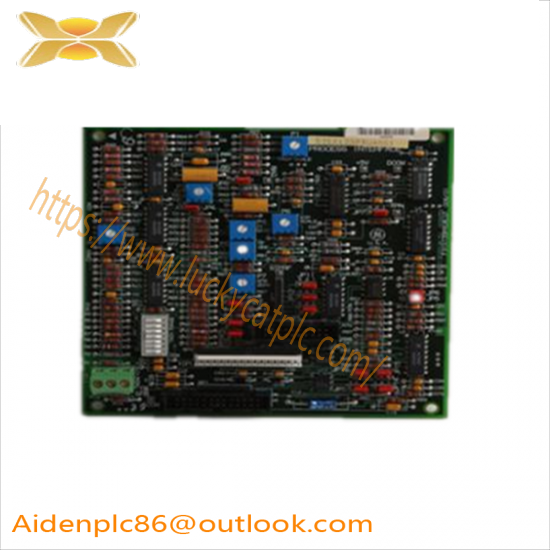

GE-FANUC 531X133PRUAMG1 PC Interface Board

Board Type:Process Interface Board

Model Number:531X133PRUAMG1

Manufacturer:GE Fanuc

Compatibility:For General Purpose Drive Systems

Interface:Digital Signal Processing

Power Supply:AC/DC Input

Operating Temperature:-40°C to +70°C

Storage Temperature:-55°C to +85°C

Dimensions:200mm x 100mm x 10mm

Connectors:Header Connector, Vertical Pin Connectors, Three-Screw Connection Terminal Strip

Material:Ceramic, Electrolytic Material, Polyester Vinyl

Resistors:Metal Film

Potentiometers:Six Resistor Network Arrays, Seven Potentiometers

    The GE Fanuc 531X133PRUAMG1 Process Interface Board is engineered to provide exceptional performance in industrial control environments. Its robust design includes a variety of components, such as capacitors made of ceramic, electrolytic, and polyester vinyl, ensuring reliability across different operational conditions.

    This board features six resistor network arrays and seven potentiometers, each individually labeled to control specific ranges, such as ‘PF GAIN’, enhancing precision in signal control applications. The potentiometers offer precise adjustment, crucial for tuning system responses according to varying operational needs.

    Connectivity is assured with a header connector, two vertical pin connectors (male), and a three-screw connection terminal strip, providing flexible and secure connections to other board components and external devices. The board’s design includes holes at each corner for mounting, accommodating a variety of installation scenarios.

    With its detailed marking including codes, reference designators, and individual part numbers, the 531X133PRUAMG1 ensures ease of identification and replacement, streamlining maintenance processes. The interface board is a critical component in enhancing the overall efficiency and reliability of industrial control systems, making it an indispensable choice for engineers and technicians seeking high-performance solutions.

    For optimal performance, it is recommended to consult the specific system’s user guide or manual to ensure compatibility and proper integration. GE offers extensive resources and support to assist users in maximizing the capabilities of the 531X133PRUAMG1, contributing to the seamless operation of complex industrial drive systems.
