Input Voltage Range:230-480 Vrms, Three-Phase
Nominal Input Current (AC):14 Amps
Root Mean Square Input Frequency (AC):47-63 Hz
Maximum Output Power @ 480 VAC:10.0 kW
Continuous Output Power @ 230 VAC:5.0 kW
Internal Shunt Resistance:40 ohms
Max Power Loss:350 watts
Shunt On Voltage:800V dc
Weight:Approximately 10.44 kg (22.96 lbs)

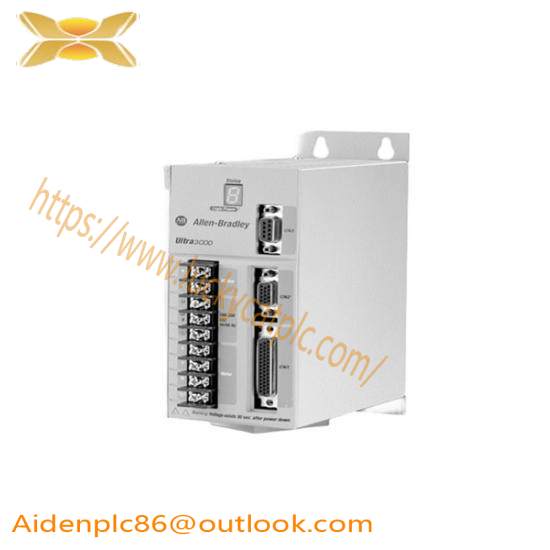

The Allen-Bradley 2098-DSD-HV100-SE is a high-performance servo drive engineered for demanding industrial applications, featuring robust design and advanced technology to ensure precise and reliable operation. With an input voltage range from 230 to 480 VAC and a 3-phase configuration, it provides exceptional flexibility and compatibility with various electrical systems.
Equipped with an internal shunt resistance of 40 ohms, this drive is capable of handling maximum power losses of 350 watts, ensuring efficient energy management and optimal performance under heavy loads. Its lightweight design, weighing approximately 10.44 kilograms, facilitates easy installation and maintenance without compromising on durability.
Withstanding shocks of up to 15 g at 11 ms half-sine, the 2098-DSD-HV100-SE ensures operational safety even in harsh environments. It boasts a continuous output current of 46A (0-peak) at 480 VAC, delivering unmatched power to your machinery, making it suitable for applications requiring high torque and speed control.
Featuring a compact footprint measuring 9.54 x 14.2 x 5.46 inches (242.2 x 360.7 x 138.7 mm), this drive offers a seamless integration option with Allen-Bradley’s ControlLogix Programmable Automation Controller (PAC) platform and SOFTLogix controller via the Serial Real-Time Communication System (SERCOS) protocol, enhancing system connectivity and control.
Comprehensive diagnostics and monitoring features are integrated within the 2098-DSD-HV100-SE, allowing users to track performance metrics and troubleshoot issues efficiently. This makes it an ideal choice for manufacturers seeking to optimize their production processes with state-of-the-art motion control solutions.
