Product Type:Bus Coupler
Model:BK5220
Extended Product Type:Other
Operating Modes:Bit Strobe, Polling, Cyclic, Change of State (COS)
Number of I/O Stations:64
Bus Terminal Count:64
Max. Number of Bytes Fieldbus:512 input, 512 output
Digital Peripheral Signals:1,020 inputs/outputs
Power Supply:24V DC (-15 %/+20 %), through bus cable, 11…25V (DeviceNet spec.)
Input Current:70mA + (total K-bus current)/4, 500mA max.
Current Supply K-bus:1750mA
Weight:Approx. 130g

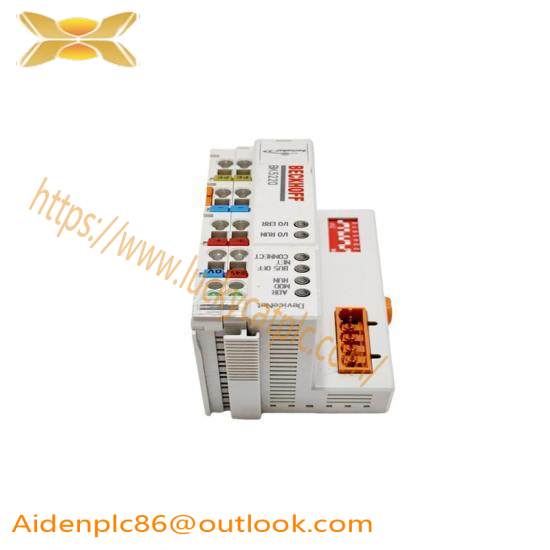

The BK5220 Bus Coupler from Beckhoff is engineered with cutting-edge technology to facilitate efficient and reliable communication in industrial automation settings. Its robust design ensures compatibility with a wide range of field devices and control systems, making it an indispensable part of any modern factory or plant.
With support for Profibus DP protocol, this module enables high-speed data transfer rates, ensuring that critical information is transmitted quickly and accurately. The BK5220 is particularly suited for applications requiring high bandwidth and low latency, such as motion control, data acquisition, and process control systems.
Featuring a compact DIN rail mountable design, the BK5220 is easy to integrate into existing control cabinets, minimizing installation time and complexity. Its robust mechanical construction withstands harsh industrial environments, providing reliable operation under extreme conditions.
For systems requiring additional functionality, the BK5220 supports K-Bus extension, allowing for expanded terminal capacity beyond the standard 64 terminals. This flexibility ensures that the module can be adapted to various system configurations without compromising performance.
Operating within a temperature range of -25°C to +60°C, the BK5220 Bus Coupler is designed to withstand the rigors of industrial environments. Its IP20 protection class provides basic dust protection, ensuring durability and longevity in manufacturing processes.
