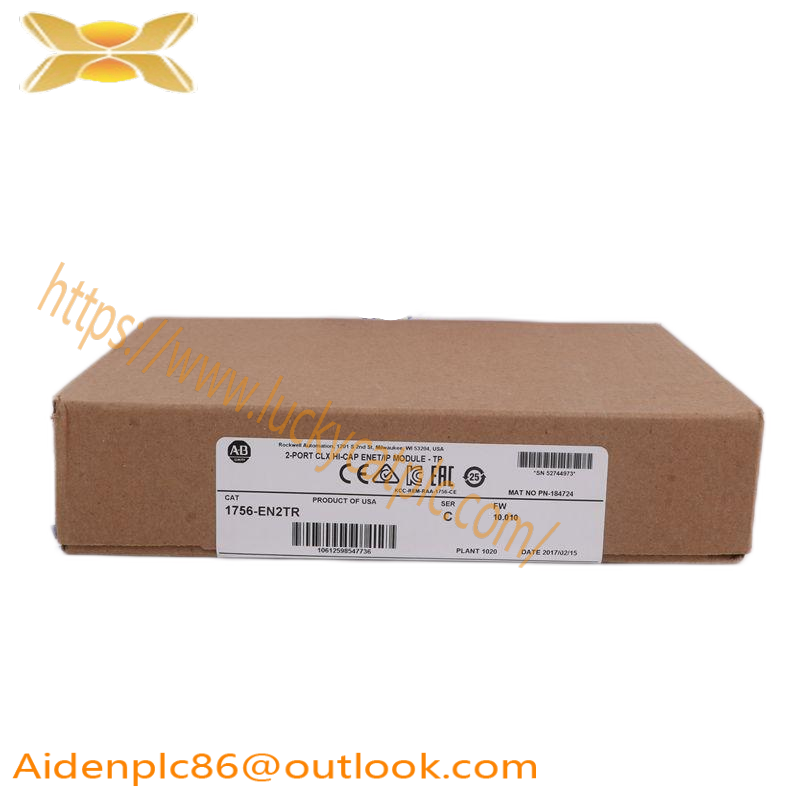

Allen-Bradley AB 1756-EN2TR/B ControlLogix EtherNet/IP Module

Model Type:Communication Module

High Capacity IP:Yes

Manufacturer:Allen-Bradley

Model Number:1756-EN2TR

Additional Information:ControlLogix Communication Module

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Available

    The Allen-Bradley AB 1756-EN2TR/B ControlLogix EtherNet/IP Module is engineered for high-speed data transfer, ensuring reliable communication in industrial automation systems. It seamlessly integrates with ControlLogix PLCs, providing a robust foundation for networked control systems.

    With support for multiple protocols, including Ethernet/IP, this module optimizes connectivity across various devices, enhancing system flexibility and scalability. Its open-type enclosure design ensures durability and easy installation in diverse industrial settings.

    Equipped with advanced isolation technology, it ensures stable operation under extreme environmental conditions, making it suitable for harsh industrial environments. The built-in Ethernet interface facilitates direct connection to Ethernet/IP networks, streamlining data exchange and control functions.

    The power dissipation rating of 5.1 W ensures efficient operation, minimizing energy consumption without compromising performance. The module’s compliance with 802.3 standard cables ensures compatibility with a wide range of twisted pair cables, enhancing its usability in various applications.

    In addition, the inclusion of a USB port enables convenient software updates and configuration, supporting ease of maintenance and system customization. This comprehensive feature set makes the Allen-Bradley AB 1756-EN2TR/B ControlLogix EtherNet/IP Module a critical component for enhancing productivity and efficiency in modern manufacturing operations.
