Model Type:Bridge Module
Model Number:1756-EN2TK
Manufacturer(s):Allen-Bradley
Communication Protocol:EtherNet/IP
Mounting:Chassis
Communication Speed:10/100 Mbps
Temperature Rating:0 – 60°C
Power Dissipation:5.1 W
Isolation:30 V Continuous
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration Resistance:2 G
Shock Resistance:30 G
Enclosure Type:Open Type
Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair
Power Supply:3 MA at 24 VDC

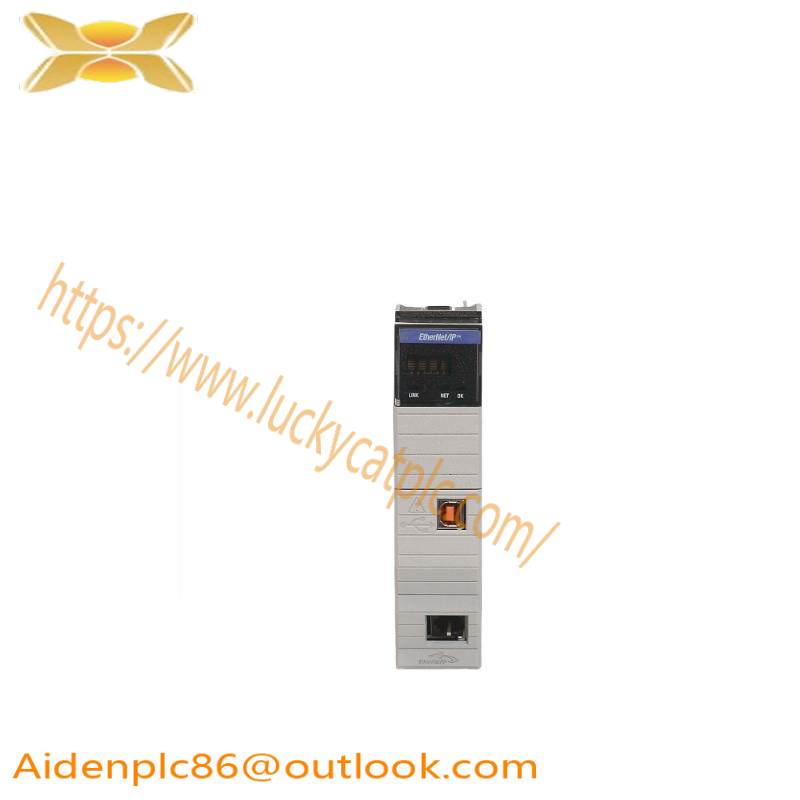

The Allen-Bradley 1756-EN2TK Ethernet Bridge Module is a high-capacity device designed to streamline integration between ControlLogix PLC systems and EtherNet/IP networks. Its robust design ensures reliable data transmission in a wide range of industrial settings.
Featuring a modular architecture, this bridge module can be easily integrated into existing ControlLogix systems without compromising performance or functionality. It supports 10/100 Mbps communication speeds, providing flexibility and efficiency in network communication.
With a temperature rating from 0 to 60 degrees Celsius, the 1756-EN2TK is suitable for a variety of industrial environments. Its low power dissipation of 5.1 watts makes it energy-efficient, reducing operational costs and enhancing system reliability.
The module’s open-type enclosure provides easy access for maintenance and customization, while its compatibility with shielded or unshielded twisted pair cables ensures flexibility in installation. Additionally, its vibration resistance of 2 G and shock resistance of 30 G make it durable under harsh industrial conditions.
Equipped with an advanced communication protocol, the Allen-Bradley 1756-EN2TK Ethernet Bridge Module enables seamless data exchange between ControlLogix PLCs and EtherNet/IP networks, optimizing productivity and efficiency in manufacturing processes.
