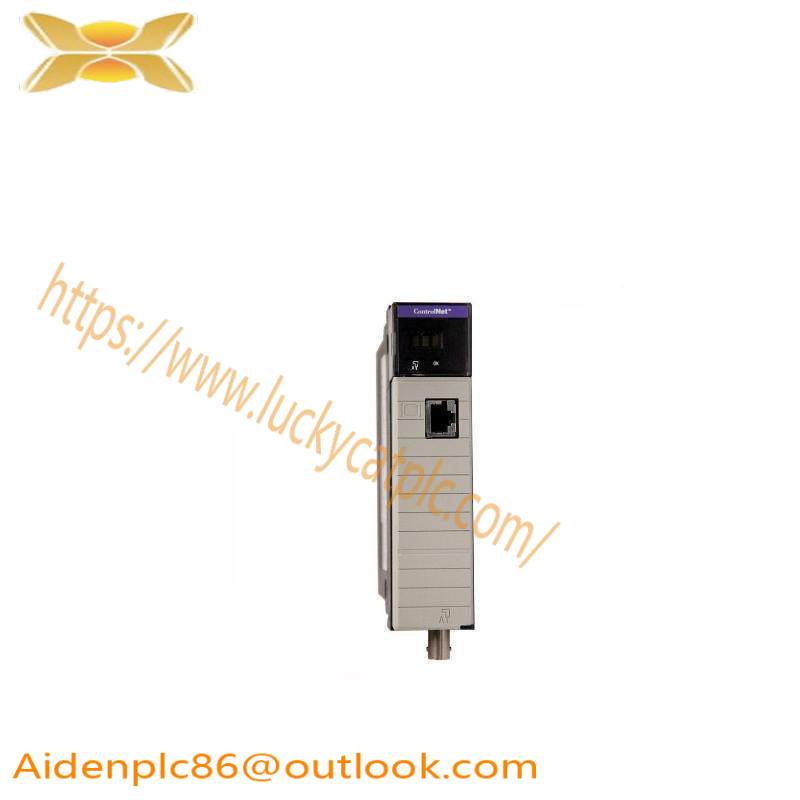

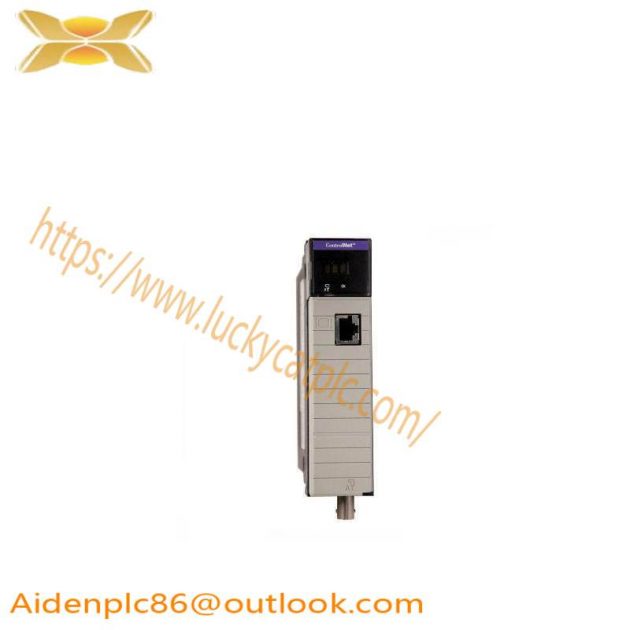

Allen Bradley AB 1756-CNBD ControlLogix Bridge Module

Model Type:ControlLogix Bridge Module

Manufacturer:Allen Bradley

Model Number:1756-CNBD

Number of Channels:Redundant 2 Channels

Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Isolation:30 V (Continuous)

Basic Insulation Type:ControlNet A/B to Backplane, ControlNet A to ControlNet B

No Isolation Between NAP Or USB and Backplane:Not applicable

Enclosure Type:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 900 MHz, 3 V/M with 1 KHz sine-wave 80% AM from 2000 – 2700 MHz

Conducted EMI:10 VRMS with 1 KHz sine-wave 80% AM from 150 kHz – 80 MHz

    The Allen Bradley AB 1756-CNBD ControlLogix Bridge Module is engineered to optimize industrial automation networks by providing robust DeviceNet communication capabilities. This module ensures reliable data transmission, enhancing system performance and efficiency.

    Featuring advanced isolation technology, the module guarantees protection against electromagnetic interference, ensuring stable operation in harsh industrial environments.

    With its redundant design, the AB 1756-CNBD provides fail-safe operation, critical for maintaining continuous process control and minimizing downtime in mission-critical applications.

    Designed for seamless integration, this module supports easy setup and configuration, making it an ideal choice for both new installations and system expansions.

    Built with Allen-Bradley’s renowned quality and durability, the AB 1756-CNBD ControlLogix Bridge Module is compatible with a wide range of ControlLogix PLCs and DeviceNet devices, offering unparalleled flexibility and compatibility in industrial automation solutions.
