Input Voltage (AC):230 to 480 V
Input Frequency (AC):47 to 63 Hz
Nominal Input Current (AC):11 A (0-peak) Continuous, 22 A (0-peak) Intermittent
Size:9.54 x 14.2 x 5.46 inches (242.2 x 360.7 x 138.7 mm)
Interface Medium:RS232, RS485, DeviceNet
Supported Interfaces:SERCOS Protocol
Multi-turn Absolute Encoder Support:Yes

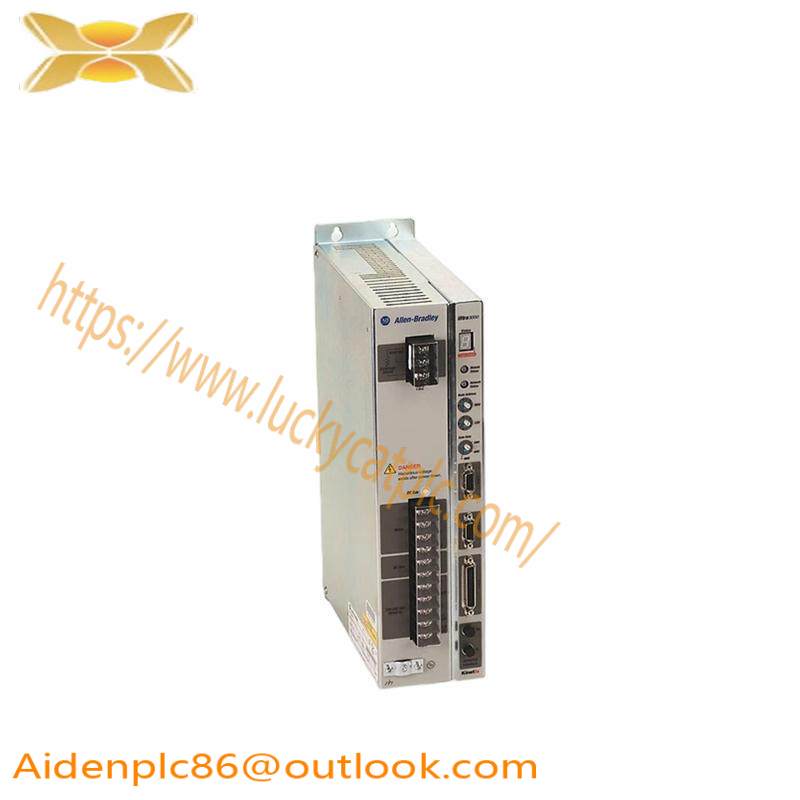

The AB 2098-DSD-HV150-SE is a high-performance servo drive designed to meet the demands of modern industrial automation. It seamlessly integrates with Allen-Bradley’s ControlLogix PAC platform, offering unparalleled precision in indexing and multi-axis motion control.
With a versatile voltage range and frequency compatibility, this drive is adaptable to various industrial settings. Its advanced commutation technology, featuring 3-Phase Sinusoidal and Space Vector Modulation (SVM), ensures efficient power delivery and smooth operation.
Featuring a dedicated slot for both RS232 and RS485 with DeviceNet interfaces, the drive offers flexible connectivity options, enabling seamless communication with a wide array of control systems. Its compatibility with multi-turn absolute encoders allows for precise position tracking and external logic power management.
Weighing in at 22.96 pounds, the compact design of the AB 2098-DSD-HV150-SE ensures minimal space requirements without compromising on performance. This servo drive is built to withstand demanding industrial environments, making it a reliable choice for continuous operation in harsh conditions.
Optimized for productivity enhancement, the drive is engineered to maximize efficiency in machine systems. Its compatibility with Allen-Bradley’s Logix 5000 series controller platforms and interface modules unlocks a wealth of customization options, allowing for tailored solutions that meet specific application needs.
