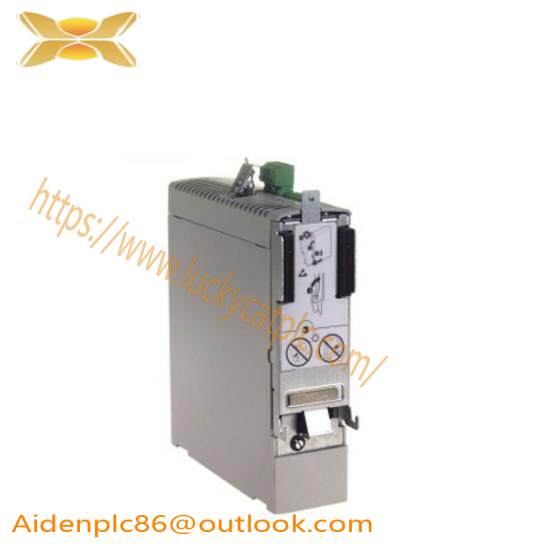

Allen-Bradley 2094-BM01-S Kinetix 6000 Axis Module

In stock

The Allen-Bradley 2094-BM01-S Axis Module is a critical component of the Kinetix 6000 Multi-Axis Drive Servo system. Designed with robust safety features including Safe Torque Off (STO), it ensures operational integrity and personnel protection in industrial automation environments.

Brand:Allen-Bradley

Model:2094-BM01-S

Module Type:Axis Module

Input Voltage:324-528V RMS, 3-phase

Nominal Voltage:360/480V

Nominal Input Voltage:650V DC

Continuous Output Current:6.1 A

Peak Output Current:8.6 A

Continuous Output Power:3.9 kW

Efficiency:98%

Internal Shunt Peak Power:5.6 kW

Internal Shunt Continuous Power:50 W

Power Dissipation:57-126 Watts

Velocity Loop Bandwidth Frequency:500 Hz

Current Loop Bandwidth Frequency:1300 Hz

PWM Frequency:8 kHz

Capacitance:150 μF

Continuous Current (RMS):6.1 A

Continuous Current (0-peak):8.6 A

Internal Shunt Resistor:115 Ω

Heat Dissipation:N/A

Weight:N/A

The Allen-Bradley 2094-BM01-S is a key component of the Kinetix 6000 Multi-Axis Drive Servo system.

Designed for applications requiring up to Safety Integrity Level (SIL) 3 and Performance Level (PLe), this module integrates advanced safety features like Safe Torque Off (STO).

Its compact design ensures easy installation and maintenance on the 8-axis power rail.

Featuring an impressive efficiency of 98%, it minimizes energy consumption while maximizing productivity.

The module’s robust internal shunt resistor ensures stable operation under varying load conditions.

With its broad input voltage range and high PWM frequency, it can handle a variety of industrial loads and environments.
