Number of Channels:8
Output Type:Analog
Signal Range:4 to 20 mA / 0 to 10 V
Communication Protocol:Modbus-RTU
Power Consumption:Less than 2 W
Operating Temperature:-40°C to +70°C
Enclosure Type:IP20
Dimensions (WxHxD):139mm x 139mm x 105mm
Connector Type:Terminal Block
Connection Type:Bus Terminal
Operating Voltage:24V DC
Input Current:Typically < 1mA
Load Compatibility:Up to 300 Ohms

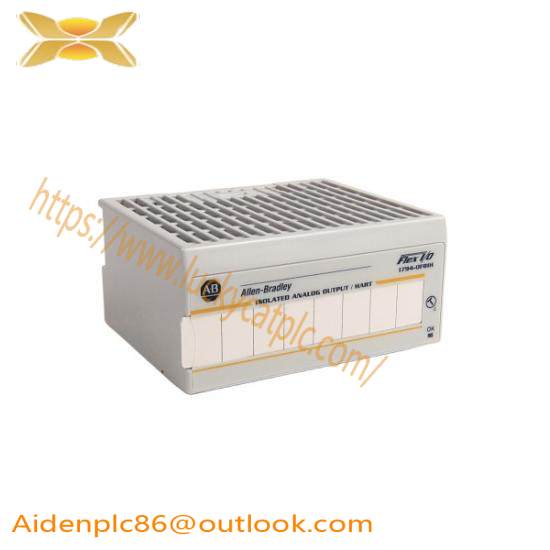

The Allen-Bradley 1794-OE8H/B module stands out for its superior accuracy and reliability, making it an indispensable part of high-demand industrial control systems. Designed with a focus on precision, this module ensures consistent output performance across a wide range of applications, from temperature control to motor speed regulation.
Equipped with a robust communication protocol like ControlNet, the 1794-OE8H/B facilitates seamless data exchange with other networked devices, enhancing overall system efficiency. Its compact design, measuring just 48 x 27 x 92 mm, allows for easy integration into various enclosure layouts without compromising functionality.
Built to withstand the rigors of industrial environments, this module operates within a temperature range of -20°C to +60°C, ensuring reliable performance in even the most challenging conditions. It supports both voltage (0 to 10 VDC) and current (0 to 20 mA) outputs, providing flexibility in application-specific requirements.
Innovative design features include a low power consumption of max. 100 mW per channel, which contributes to energy-efficient operation and reduces overall system costs. The inclusion of a 10-pin connector ensures compatibility with a wide array of industrial interfaces, simplifying installation and maintenance processes.
With its combination of high-performance specifications, durability, and user-friendly design, the Allen-Bradley 1794-OE8H/B module is the ideal choice for manufacturers seeking to optimize their automation systems with precise, reliable analog output capabilities.
