Processor Speed:1 MHz
Memory Capacity:2 MB
Programming Languages:Ladder Diagram, Structured Text, Function Block Diagram
I/O Capacity:Up to 500 points
Communication Protocols:Modbus, Ethernet/IP, DeviceNet
Operating Temperature:-20°C to 60°C
Power Consumption:12 to 24 VDC
Dimensions (WxHxD):127 x 324 x 96 mm

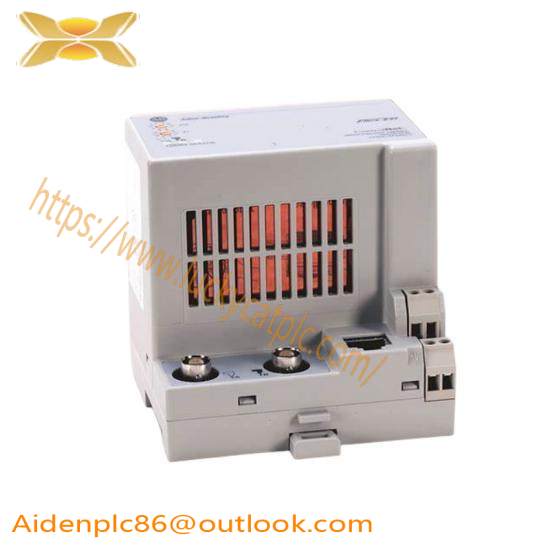

Crafted with precision and engineered for reliability, the Allen Bradley 1794-ACNR15 is a game-changer for industrial automation environments. This redundant media adapter ensures seamless communication within ControlNet networks, significantly enhancing system uptime and operational efficiency.
Featuring two (2) high-speed ControlNet BNCs, the device supports robust data transfer rates, crucial for complex control systems. Its 24 V DC voltage rating and wide input voltage range (19.2-31.2V DC) make it adaptable to various industrial settings, ensuring compatibility across diverse environments.
Equipped with 850V DC isolation, the adapter guarantees unparalleled electrical safety, protecting against potential surges and maintaining consistent performance. Whether mounted on a DIN rail or panel, its versatile mounting options accommodate diverse installation needs.
With its dual functionality for non-redundant media operation and a dedicated NAP connector (RJ-45 8-pin with shield), the Allen Bradley 1794-ACNR15 offers flexibility and enhanced connectivity, supporting a wide array of applications. The inclusion of a backplane current of 1.0 Amperes at 5 Volts ensures efficient power distribution.
Compact yet powerful, this module measures 3.5 x 6.5 x 2.0 inches (89 x 165 x 51 mm), fitting seamlessly into existing control panel layouts without compromising space. Designed for durability and ease of integration, the Allen Bradley 1794-ACNR15 is an indispensable component for modern industrial automation systems.
