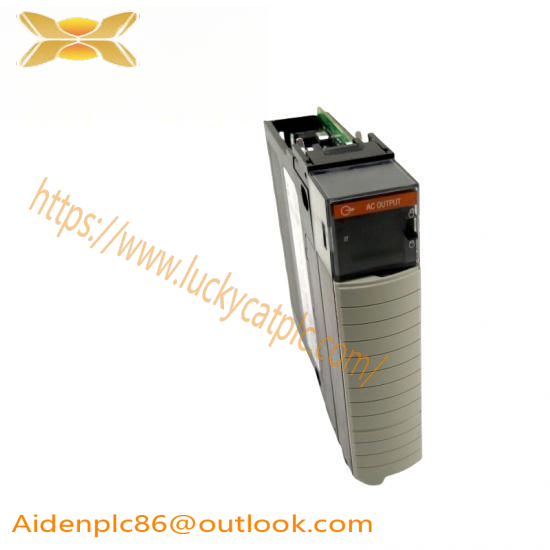

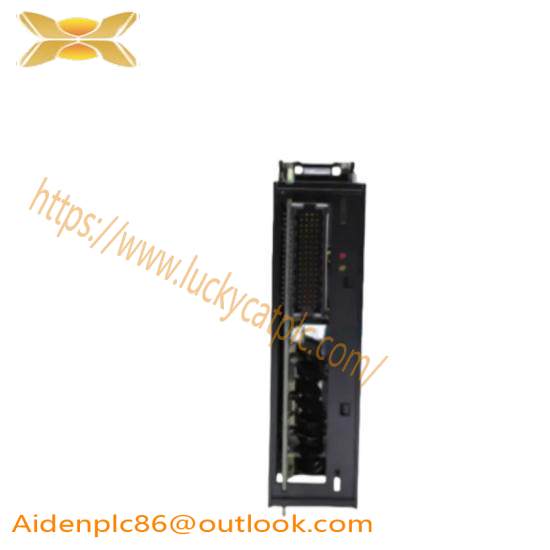

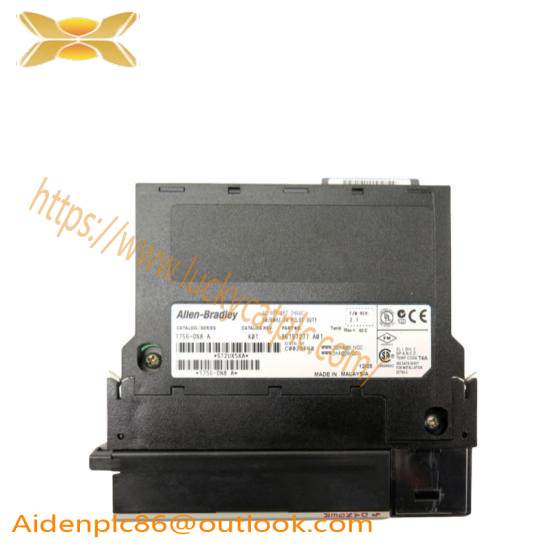

Allen-Bradley 1756-ON8 ControlLogix Digital Output Module – Precision Control for Industrial Automation

Model Type:Digital Output Module

Manufacturer:Allen-Bradley

Model Number:1756-ON8

Number of Outputs:8

Voltage Rating:DC 24V

Current Rating:5A

Communication Protocol:ControlLogix

Environmental Conditions:IP20 (NEMA 1)

Operating Temperature:-40°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions:2.3 x 5.2 x 1.0 inches

Weight:0.3 pounds

    The Allen-Bradley 1756-ON8 ControlLogix Digital Output Module is a cornerstone of modern industrial automation systems, offering unparalleled precision and reliability. Designed for seamless integration into a wide range of industrial applications, this module is equipped with advanced features that enhance operational efficiency.

    Featuring a high switching frequency of up to 1 kHz, the 1756-ON8 ensures rapid response times, making it suitable for demanding processes that require quick adjustments. With an operating voltage range from 12 to 60 VDC, it provides flexibility in power supply options.

    This module supports both latching and non-latching outputs, allowing users to tailor their control strategies according to specific application requirements. Each channel is rated at 1A, providing sufficient current capacity for most industrial loads.

    For communication, the Allen-Bradley 1756-ON8 is compatible with the industry-standard ControlLogix EtherNet/IP protocol, ensuring compatibility with other devices in the network. It also meets environmental standards, making it suitable for operation in harsh industrial environments.

    Operational temperatures ranging from -40°C to +85°C ensure durability and longevity in various climates. This makes the Allen-Bradley 1756-ON8 a versatile choice for manufacturing floors, processing units, and beyond.
