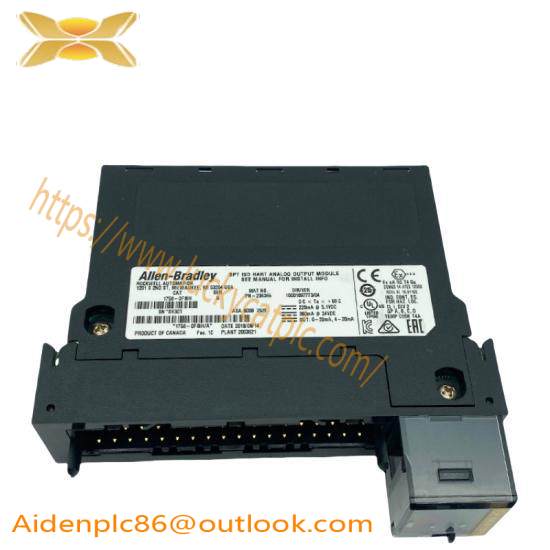

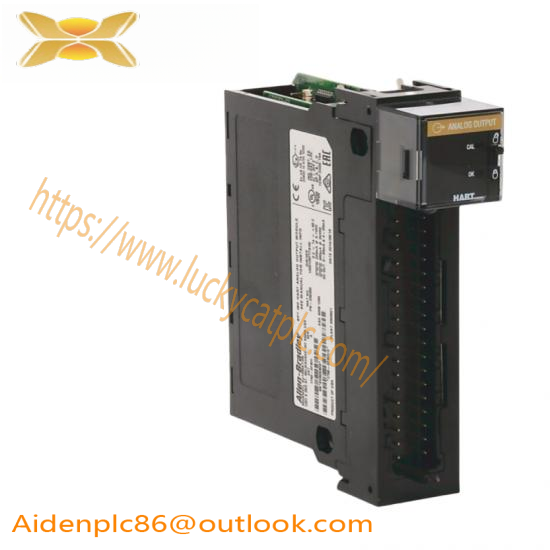

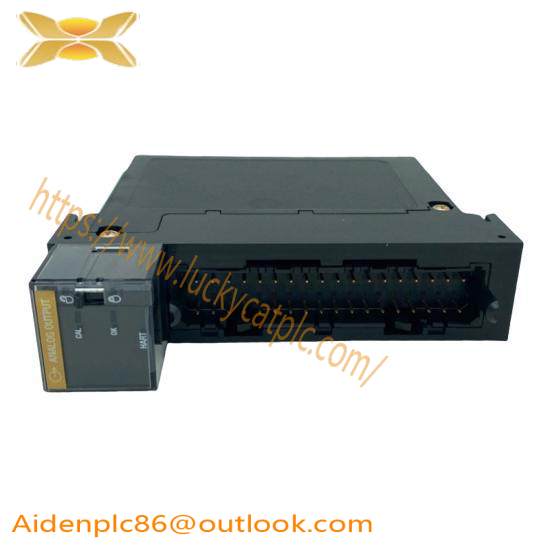

Allen-Bradley 1756-OF8IH: ControlLogix Analog Output Module with HART Protocol

Model Type:ControlLogix

Model Number:1756-OF8IH

Manufacturer:Allen-Bradley

Number of Outputs:8

Output Type:Analog

Communication Protocol:HART

Isolation Voltage:30 VDC (continuous)

Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Input Range:Multiple configurable current and voltage input ranges

Output Range:Variable, configurable based on application

Sampling Rate:Real-time

Alarms:Process alarms, rate alarm, wire-off detection

    The Allen-Bradley 1756-OF8IH ControlLogix Analog Output Module with HART Protocol is engineered for high-precision control in demanding industrial environments. This module supports 8-channel analog outputs, enabling versatile control over various processes.

    Equipped with HART protocol, the module facilitates easy communication with field devices, enhancing diagnostic capabilities and providing real-time monitoring and control.

    With a wide input voltage range of 10 Vdc to 32 Vdc, the module ensures compatibility across different systems and devices, making it a flexible choice for various applications.

    Featuring a robust enclosure type IP20, the module is designed for durability and reliability, ensuring long-lasting performance even under harsh conditions.

    The Allen-Bradley 1756-OF8IH offers efficient power consumption, reducing energy costs and enhancing operational efficiency.

    This module is part of the extensive Allen-Bradley ControlLogix series, known for its modular design and scalability, allowing for easy integration into existing automation systems.
