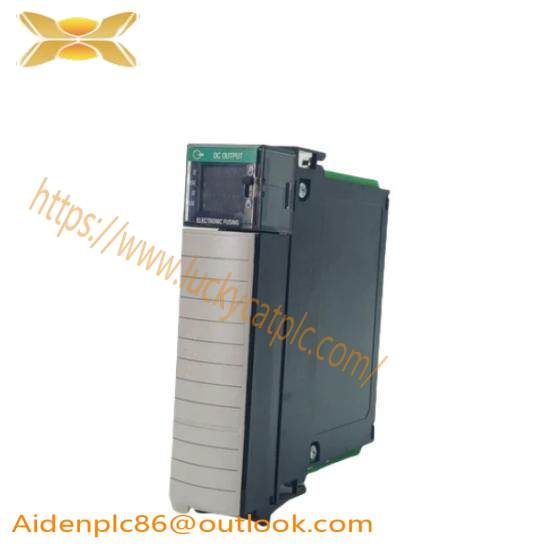

Allen Bradley 1756-OB16E ControlLogix 16 Point Digital Output Module

Model Type:ControlLogix

Product ID:1756-OB16E

Allen Bradley Type Designation:Digital DC Output

No. of Outputs:16

Output Voltage Range:10-31.2 VDC

Nominal Output Voltage:24 VDC

Outputs:Sixteen (16) 12-24 Volt DC Outputs

Product Model:Allen Bradley 1756-L63

Compatible Backplane:Single-Slot ControlLogix

Ethernet Configuration:10/100 Mbps auto crossover detection

Memory Mapping:Up to 5000, 16-bit registers

Network Compatibility:CIPconnect-enabled

I/O Image Size:Optimized for remote rack implementations

Configuration Software:ProSoft Configuration Builder (PCB)

    This Allen Bradley 1756-OB16E ControlLogix 16 Point Digital Output Module is a critical component in modern industrial automation systems, ensuring seamless integration with various control platforms.

    With its 16 electronically fused outputs, this module provides precise control over machinery and processes, enhancing efficiency and reducing downtime.

    Featuring a wide output voltage range from 10-31.2 VDC, it caters to diverse applications requiring high performance and reliability. The 24 VDC nominal output voltage ensures compatibility with a broad spectrum of devices.

    The user-definable data memory mapping capability allows for flexible configuration tailored to specific operational needs, maximizing the system’s efficiency and responsiveness.

    Backward compatibility with previous versions ensures a smooth transition and maintains system integrity during upgrades or maintenance periods. Its single-slot ControlLogix backplane compatibility optimizes space and reduces installation complexity.

    Equipped with advanced network configuration tools, including CIPconnect support, users can easily monitor and diagnose network issues, enhancing operational reliability and ease of maintenance.
