Model Type:SLC500
Manufacturer:Allen Bradley
Number of Channels:4
Input Voltage Range:-20V to +20V DC or -20mA to +20mA
Output Voltage Range:0V to +10V DC – 1 LSB
Input Current Range:-20mA to +20mA
Output Current Range:0mA to +20mA
Isolation Rating:Backplane: 500VDC, Enclosure: Open Type
Operating Voltage:24V DC
Current Draw:35mA at 5V, 85mA at 24V
Overvoltage Protection:7.5VAC RMS

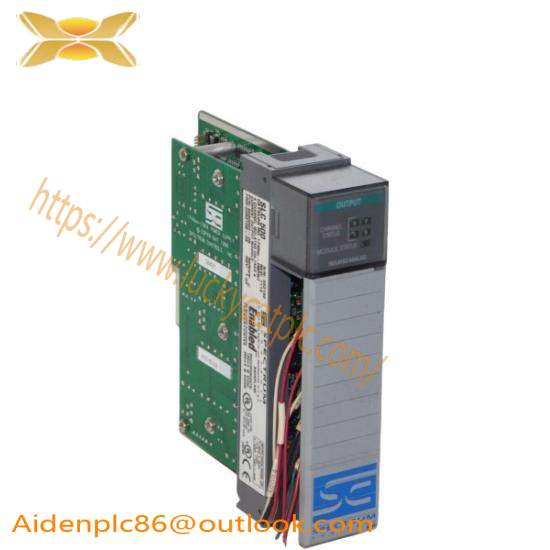

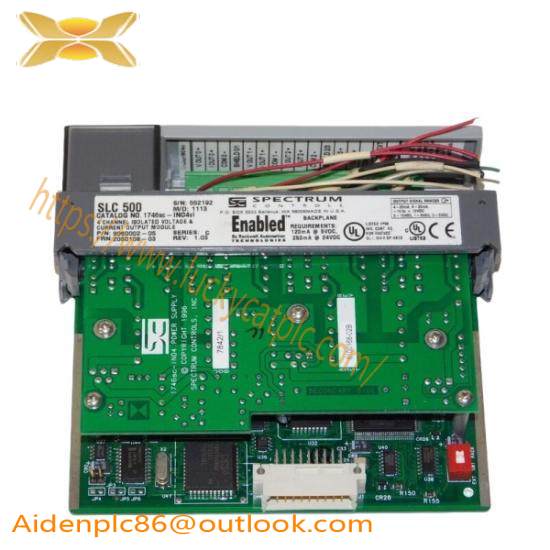

The Allen-Bradley 1746SC-INO4vi offers unparalleled precision in voltage output control, making it an indispensable component for complex industrial processes that demand accuracy and reliability. This module is seamlessly integrated with the Allen-Bradley SLC 500 system, allowing for effortless setup and operation.
Each of the four voltage outputs provides a range of +/-10V DC, ideal for various industrial applications such as motor control, process regulation, and equipment synchronization. The non-isolated outputs facilitate efficient power distribution within the system.
To ensure optimal performance and compatibility, the module requires both a 5V DC and 24V DC power supply, which can be sourced either from the backplane or an external 24V DC power supply. This dual power supply configuration ensures reliability and flexibility in power management.
Designed with industrial-grade materials, the Allen-Bradley 1746SC-INO4vi boasts a robust construction capable of operating within a wide temperature range of -20°C to +50°C. Its compact size facilitates easy integration into existing control systems without compromising on functionality.
For a seamless user experience, detailed documentation and comprehensive technical support are provided. Installation and maintenance are simplified through intuitive design and clear instructions, enabling quick deployment and minimizing downtime.
