Model Type:Digital DC Output Module
Number of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA
Current Rating (Backplane):0.28 A
Continuous Current per Output:0.25 A at 60 DEG C
Continuous Current per Module:4 A at 60 DEG C
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95% Relative Humidity (non-condensing)

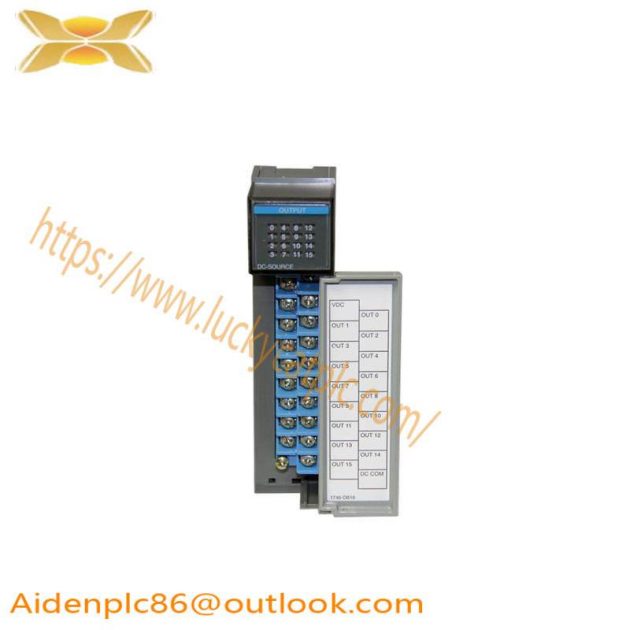

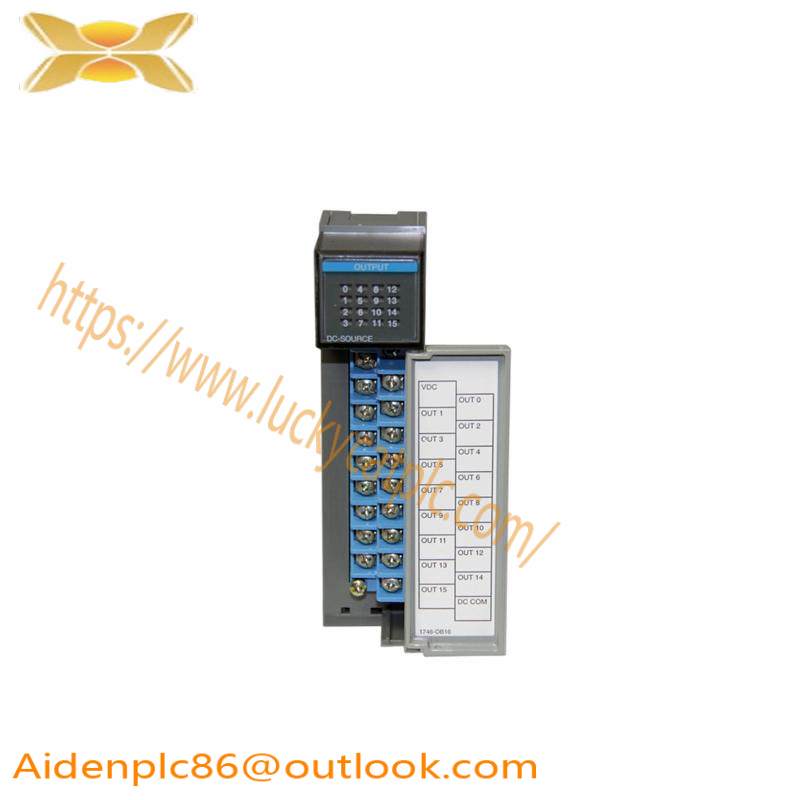

The AB 1746-OB16 Digital I/O Module is designed with cutting-edge technology to provide unparalleled performance in industrial automation environments. This high-quality component is specifically engineered to meet the demands of modern industrial systems, ensuring precise control and enhanced operational efficiency.
Featuring 16 discrete output channels, the module offers a wide range of voltage options for diverse applications, making it suitable for a variety of control scenarios. Its low on-state voltage drop ensures minimal power consumption and reduced system costs, contributing to sustainable and efficient operation.
The robust design includes excellent isolation capabilities between communication circuits and the backplane, ensuring reliable data transmission and minimizing interference. This feature is crucial for maintaining the integrity of the control system, even under challenging environmental conditions.
The open-type enclosure allows for easy access to components, facilitating maintenance and customization without compromising on safety. The chassis mounting ensures secure installation, providing flexibility in system design and deployment.
With a temperature rating of 0 to 60°C and environmental conditions accommodating up to 95%, the AB 1746-OB16 Digital I/O Module is designed to withstand harsh industrial environments, ensuring dependable operation in various settings. This makes it an ideal choice for manufacturers looking to upgrade or expand their automation infrastructure.
