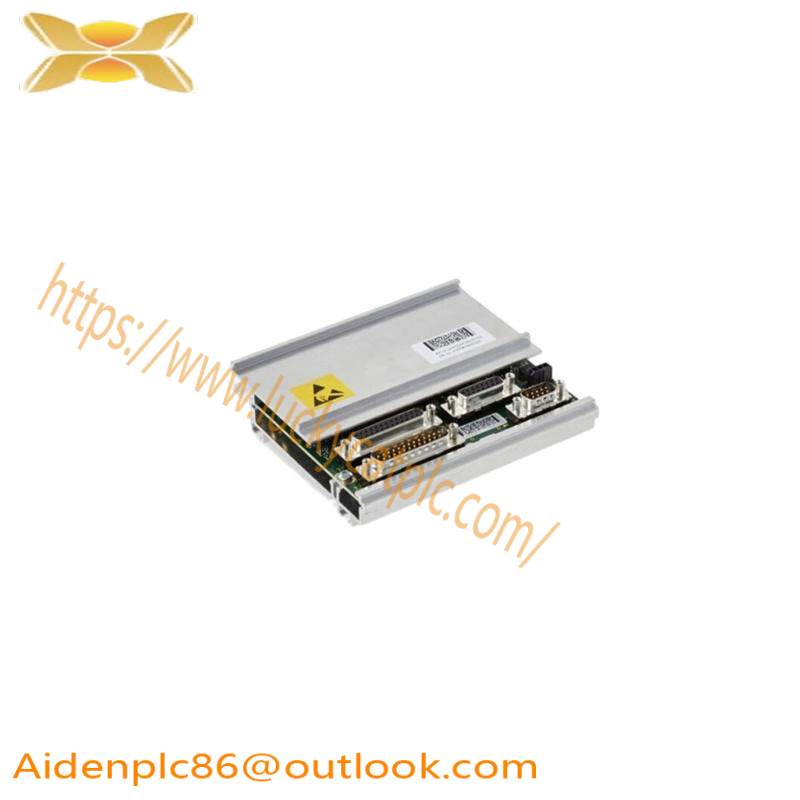

ABB SMB Measurement Board: 3HAC044168-001 & 3HAC042285-001 & 3HAC031115-002, Industrial Precision at its Core

Model:[“3HAC044168-001″,”3HAC042285-001″,”3HAC031115-002”]

Type:SMB Measurement Board

Operating Voltage:8…40 V DC

Operating Temperature Range:-20°C…+70°C

Dimensions (W x H x D):110 x 122 x 16 mm

Weight:0.1 kg

Data Acquisition Speed:100 kSPS

Analog Inputs:4 channels

Digital Inputs:2 channels

Communication Interface:RS485

Accuracy:+/- 0.01% + 2 LSB

Operating Conditions:Shock resistance: 10g, 5ms, per MIL-STD-202F Method 213; Vibration resistance: 2g, per MIL-STD-202F Method 204

    The ABB SMB Measurement Board is meticulously designed to enhance the precision and reliability of industrial measurement systems, ensuring accurate data acquisition under a wide range of operating conditions.

    Featuring four high-precision analog input channels, this board enables the collection of critical data for process control, monitoring, and analysis, making it indispensable in sectors such as manufacturing, energy, and automation.

    With an operating voltage range from 8 to 40V DC and a temperature tolerance from -20°C to +70°C, it ensures robust performance across various industrial environments, from cold storage facilities to high-temperature production lines.

    Equipped with two digital input channels, it facilitates the integration of binary inputs, such as sensor states or machine statuses, enabling comprehensive system monitoring and alert functionalities.

    The RS485 communication interface supports seamless data transfer with other devices, ensuring efficient and reliable data exchange within industrial networks.

    Its accuracy of +/- 0.01% + 2 LSB ensures minimal error margins, critical for applications where precision is paramount, such as quality control in manufacturing processes or environmental monitoring.
