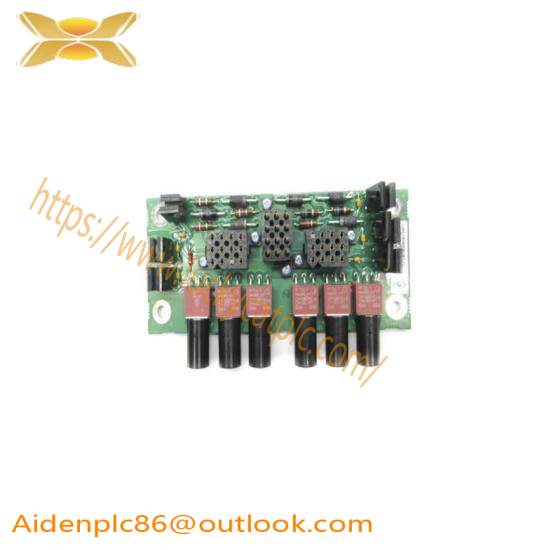

Model:DSQC1050 3HAC064474-001
Manufacturer:ABB
Type:Industrial Control Circuit Board
Dimensions:140 x 140 x 15 mm
Weight:150 g
Operating Temperature:-20°C to +60°C
Voltage:24V DC
Communication Interface:RS-232, CANopen
Input Channels:16 digital inputs
Output Channels:16 digital outputs
Analog Inputs:2 x 4-20mA current loops
Analog Outputs:2 x 0-10V voltage
Protocol Compatibility:Modbus TCP/IP, OPC-UA
Relay Contacts:1000 V AC / 500 V DC
The ABB DSQC1050 modular I/O board is engineered to enhance the efficiency and reliability of industrial automation systems. Its compact design and versatile connectivity options make it an ideal choice for integrating into complex control architectures.
Featuring four analog inputs capable of measuring voltage or current signals, the DSQC1050 provides precise data acquisition for process control applications. Additionally, it offers eight digital inputs and outputs, facilitating the connection of various sensors and actuators.
Equipped with a CANopen communication interface, the DSQC1050 ensures robust and reliable data exchange between field devices and control systems. This interface is widely adopted in industrial networks, ensuring compatibility and ease of integration.
With its 24V DC power supply capability, the DSQC1050 is suitable for a wide range of industrial environments. The board’s dimensions of 125mm x 90mm x 24mm allow for efficient use of space within control cabinets, making it a space-saving solution.
The DSQC1050 is fabricated from high-quality materials, ensuring durability and reliability in harsh industrial settings. Its robust construction and adherence to stringent quality standards guarantee long-term performance and minimal maintenance requirements.
