Type:Counter Module
Model:DSDP140B
Series:57160001-ACX
Operating Voltage:DC 24V
Input Signals:10 kHz, 5 V peak-to-peak square waves
Counting Capacity:Up to 999,999,999 counts
Output Signals:2x Normally Open contacts, 1x Normally Closed contact
Communication Interface:Modbus RTU over RS485
Operating Temperature:-25°C to +60°C
Storage Temperature:-40°C to +70°C
Relative Humidity:5% to 95% non-condensing
Enclosure Type:IP20
Dimensions (WxHxD):75mm x 90mm x 70mm
Weight:170g
Power Consumption:Typically 30mA at 24VDC

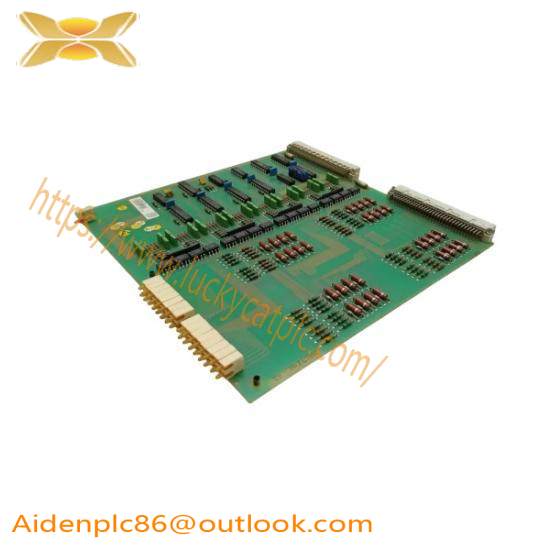

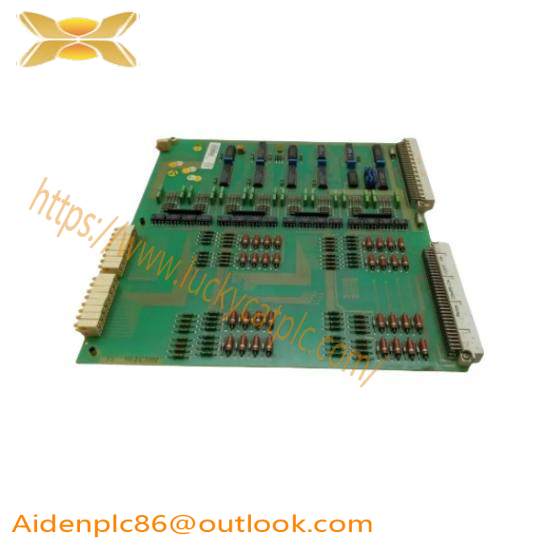

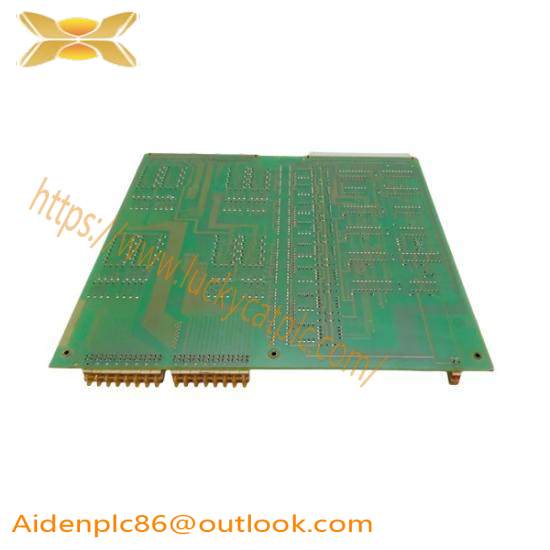

The ABB DSDP140B 57160001-ACX Counter Module is engineered for precision in industrial environments. Its advanced design ensures reliable operation over a wide temperature range, from -20°C to +60°C, making it suitable for various manufacturing processes and automation tasks.
With a resolution of just 1 μs, this counter module provides exceptional accuracy, ideal for measuring short durations or high-frequency events. Its ability to handle two input channels and deliver a single output channel makes it versatile for a range of control scenarios.
Equipped with Modbus RTU communication, the module can seamlessly integrate with existing industrial networks, allowing for easy data exchange with other devices and systems. This feature is particularly advantageous in complex automation setups requiring extensive connectivity.
Built to withstand harsh conditions, the compact dimensions of the ABB DSDP140B 57160001-ACX Counter Module ensure it fits into tight spaces without compromising performance. Its lightweight construction further facilitates installation and maintenance.
Certified for use in hazardous environments, this module adheres to international safety standards, ensuring compliance and reducing the risk of operational hazards. It’s an excellent choice for industries requiring stringent safety protocols.
