Operating Voltage:100-240V AC
Current Output Range:0-20mA or 4-20mA
Resolution:12-bit
Accuracy:+/- 0.1% of full scale
Load Capacity:Max. 250 Ohms
Temperature Range:-25°C to +60°C
Isolation Rating:500V AC
Dimensions:96mm x 48mm x 11mm
Weight:0.2kg

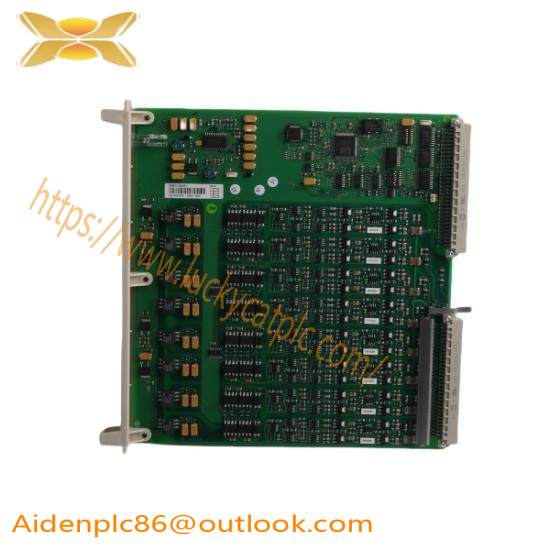

The ABB DSAO120A – 3BSE018293R1 Analog Output Board is a high-performance solution for precise signal generation in complex industrial environments. It is meticulously designed for applications requiring accurate control signals, ensuring reliable operation across a wide range of temperatures.
Featuring a compact yet robust design, this board supports a voltage rating of 12VDC and can handle currents up to 10mA per channel, providing exceptional precision and stability. With its 8-channel capacity, it offers flexibility for various control scenarios.
Equipped with 12-bit resolution, this output board ensures minimal signal distortion and enhanced accuracy. Its isolation feature, rated at 50V, provides superior protection against electrical interference, ensuring stable performance even under harsh conditions.
Adhering to industrial standards, the ABB DSAO120A – 3BSE018293R1 is compatible with Modbus RTU communication protocol, facilitating seamless integration with existing control systems. It is engineered to withstand operating temperatures from -20°C to +60°C, making it suitable for use in diverse industrial settings.
For applications requiring precise control signals, the ABB DSAO120A – 3BSE018293R1 Analog Output Board stands out as an optimal choice. Its compatibility with a maximum load resistance of 1kΩ ensures efficient operation with a variety of load types, enhancing its versatility in industrial automation.
