Operating Voltage:24V DC
Switching Frequency:50 kHz
Contact Rating:5A @ 24V DC
Relay Type:Transistor
Number of Relays:1
Response Time:≤1 ms
Operating Temperature Range:-20°C to +70°C
Enclosure Type:IP20
Mounting Type:Panel Mount
Size:35mm x 14mm x 9mm
Wiring Connections:Terminal Block
Electrical Ratings:Continuous Current: 1A, Peak Current: 3A

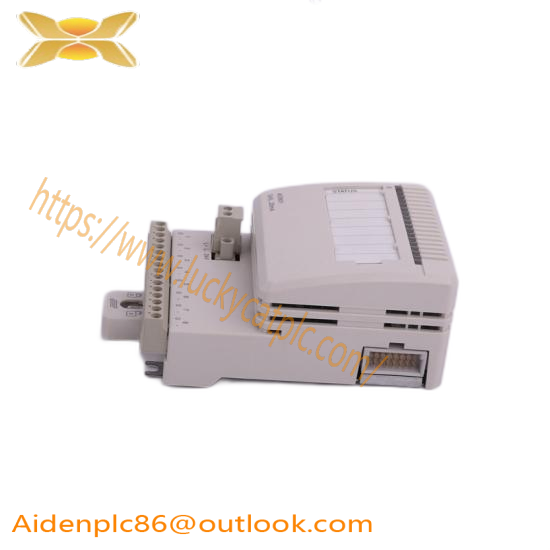

The ABB DO524 Transistor is engineered to withstand harsh industrial environments, providing unparalleled reliability and durability. Its robust design ensures consistent performance under varying temperatures, making it ideal for applications in manufacturing, energy, and process industries.
With a high power rating of 1200V/1000A, this transistor is capable of handling large currents and voltages, making it suitable for driving heavy-duty motors, heaters, and other high-power devices. Its fast switching speed of 2 milliseconds allows for precise control over mechanical operations, improving overall system responsiveness.
The module offers excellent isolation voltage protection, ensuring safety in electrically challenging environments. It features built-in protection against overcurrent, overvoltage, and short-circuit conditions, safeguarding connected equipment from damage. The ABB DO524 Transistor also supports various input signals through its DC 5V to 24V interface, enabling compatibility with a wide range of control systems.
For enhanced monitoring and diagnostics, this transistor incorporates an RS-485 Modbus RTU interface, allowing for real-time data exchange with control systems. This feature facilitates easier integration into existing industrial automation networks, streamlining system management and maintenance.
Designed for long-term reliability, the ABB DO524 Transistor undergoes rigorous testing to meet stringent international standards. Its modular construction and plug-and-play design simplify installation and maintenance, reducing downtime and enhancing operational efficiency.
