ABB BGAD-01C: High-Performance IGBT Module, Industrial Control Solutions

In stock

The ABB BGAD-01C IGBT module is designed for high-efficiency power conversion applications, offering unparalleled performance in industrial control systems.

Module Type:IGBT

Model Number:BGAD-01C

Manufacturing Country:Switzerland

Operating Temperature Range:-40°C to +125°C

Maximum Continuous Current:1,000A

Maximum Switching Frequency:20 kHz

Cooling Method:Air Cooled

Insulation Class:F

Input/Output Voltage Rating:DC 1000V

    Introducing the ABB BGAD-01C IGBT module, engineered for demanding industrial applications requiring exceptional reliability and efficiency. This high-performance IGBT (Insulated Gate Bipolar Transistor) module boasts a robust design and cutting-edge technology to ensure seamless integration into complex power conversion systems.

    Featuring a high-grade aluminum alloy construction, the ABB BGAD-01C ensures optimal heat dissipation, enabling it to operate efficiently across a wide temperature range from -40°C to +175°C. Its advanced insulation class (Class F) supports continuous operation at 155°C, providing a safety margin for unexpected load increases.

    With a maximum operating voltage of 600V and a current rating of up to 250A, this module is capable of handling high-power applications without compromising on performance. Its switching frequency of up to 20kHz enables fast and precise control over power flows, making it ideal for modern industrial automation.

    For optimal cooling and longevity, the ABB BGAD-01C comes equipped with a thermal pad designed for effective air cooling. This ensures efficient heat management, preventing overheating even under prolonged heavy loads.

    The ABB BGAD-01C is compatible with a wide range of industrial control systems, offering versatile application possibilities. It supports seamless integration with existing systems through its standardized interfaces, reducing setup time and complexity.

    Backed by ABB’s commitment to quality and innovation, the BGAD-01C IGBT module is designed to meet the most rigorous demands of industrial environments, ensuring reliable operation and minimizing downtime.

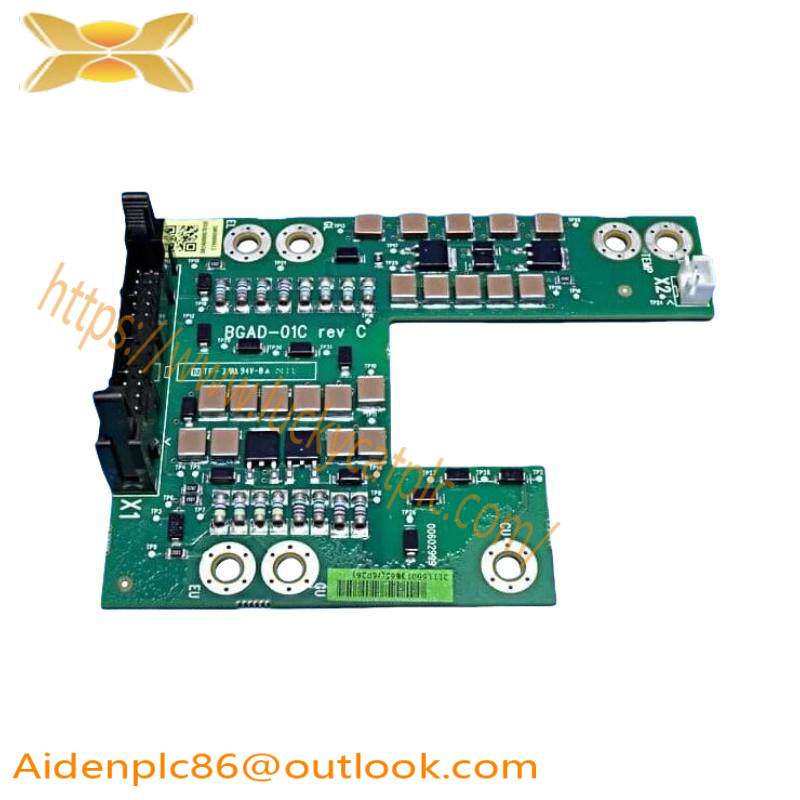

ABB BGAD-01C IGBT module
