Module Type:IGBT
Rated Current (Irms):1200A
Maximum Voltage (Vrms):690V
Switching Frequency (kHz):25
Cooling Method:Thermal Pad & Heat Sink
Operating Temperature Range:-40°C to +125°C
Insulation Resistance:≥ 10^12 ohms
Electrical Isolation:≥ 4000V AC
Mechanical Strength:250N
Environmental Compliance:RoHS compliant

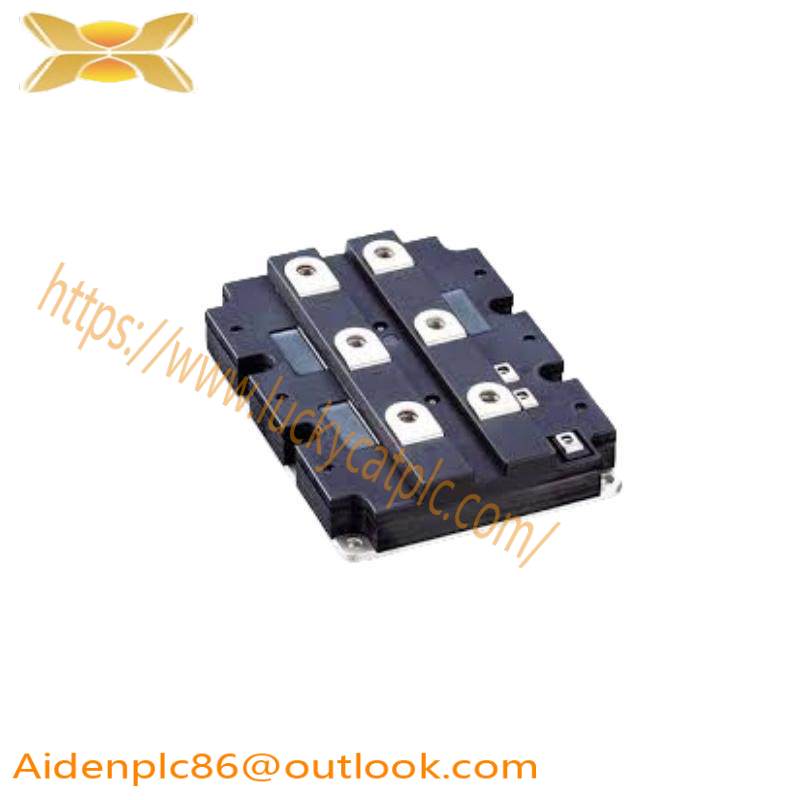

The ABB 5SNA1200E330100 HiPak IGBT Module is a cutting-edge component that significantly enhances the performance of industrial automation systems. It boasts an impressive maximum voltage capacity of 690V and a rated current of 1200A, making it suitable for high-power applications.
With a switching frequency of 25 kHz, this module ensures smooth operation and reduced electromagnetic interference, ideal for complex control scenarios. The use of a thermal pad and heat sink guarantees efficient heat dissipation, even under continuous heavy loads.
Operating within a wide temperature range of -40°C to +125°C, the ABB 5SNA1200E330100 is designed to withstand extreme conditions, ensuring reliable operation in various industrial environments.
The module’s high insulation resistance and electrical isolation ratings exceed industry standards, providing a robust barrier against electrical surges and enhancing system safety. Additionally, its mechanical strength ensures durability and longevity.
Compliant with RoHS regulations, this IGBT Module is environmentally friendly, supporting sustainable industrial practices without compromising on performance. It is a prime choice for manufacturers seeking top-tier components for their automation systems.
