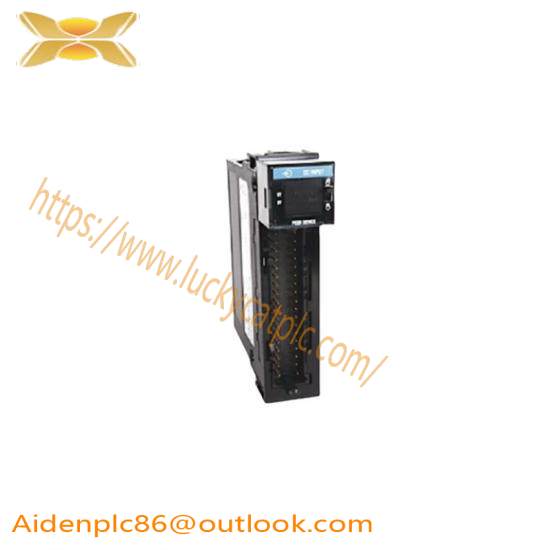

AB 1756-IB16IF ControlLogix 16 Point Digital Input Module

Model Type:High Capacity IP Module

Manufacturer:Allen Bradley

Input Type:Digital

Number of Inputs:16

Communication Cable:16-Point

Voltage Category:24V DC

Operating Voltage Range:20.4…26.4V DC

Current per Point:0.5 A @ 60 °C (140 °F), 1.0 A @ 30 °C (86 °F)

Power:24 Volts DC

Bus Current Draw, Max:200 mA

Mounting:DIN rail or panel mount

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity, 0 – 60 DEG C

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Available

Power Dissipation:5.1 W

Isolation:30 V Continuous

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Temperature Rating:-40 to +85 DEG C

    Experience unparalleled reliability with the Allen Bradley 1756-IB16IF ControlLogix 16 Point Digital Input Module, specifically engineered for industrial automation applications. This robust module is designed to provide stable, accurate data acquisition under extreme conditions, ensuring consistent performance in various manufacturing environments.

    Crafted with advanced technology, this digital input module boasts a high-speed data processing capability, allowing for quick response times and efficient integration into existing control systems. Its compact design facilitates easy installation and integration, enhancing system flexibility and scalability.

    The module’s 16-point digital inputs enable precise signal detection and transmission, making it ideal for monitoring and controlling various processes within an industrial setting. It supports a wide range of operating voltages, ensuring compatibility with diverse power sources and system configurations.

    In addition to its core functionality, the Allen Bradley 1756-IB16IF is equipped with a USB port, enabling convenient firmware updates and data backups without the need for specialized equipment. The open-type enclosure ensures reliable operation in harsh environments, while its DIN rail or panel mount design accommodates versatile installation options.

    Backed by Allen Bradley’s commitment to quality and innovation, this module offers unmatched reliability and longevity, backed by comprehensive support and warranty. Whether you’re upgrading existing infrastructure or building new control systems, the Allen Bradley 1756-IB16IF ControlLogix 16 Point Digital Input Module is the perfect choice for achieving peak performance and efficiency in your industrial operations.
