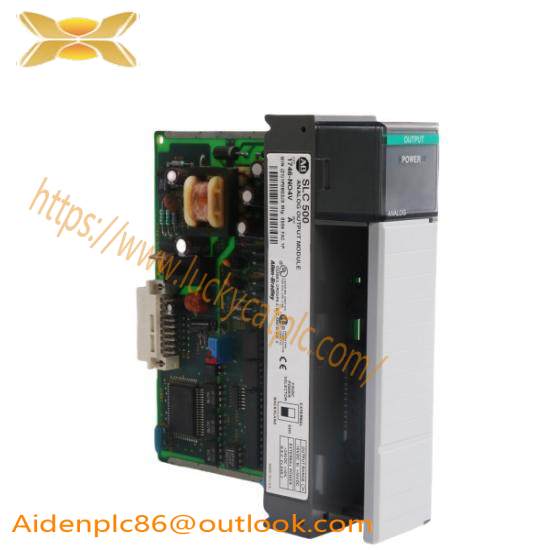

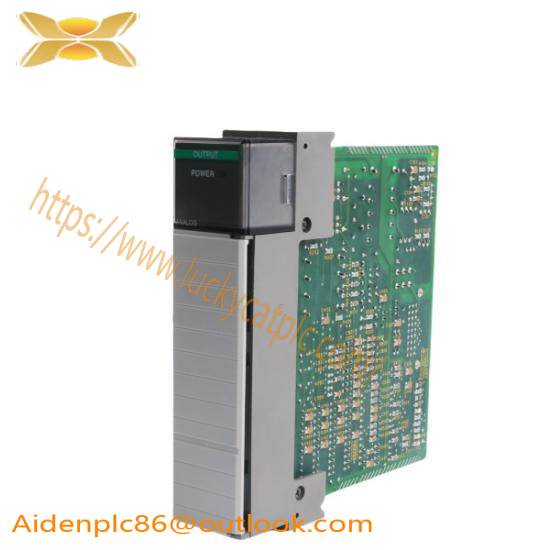

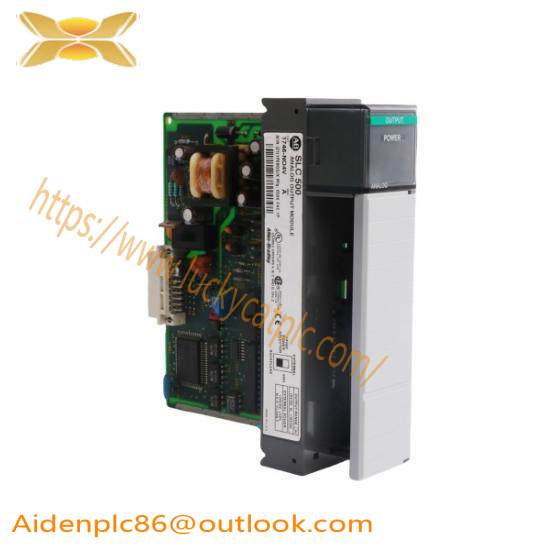

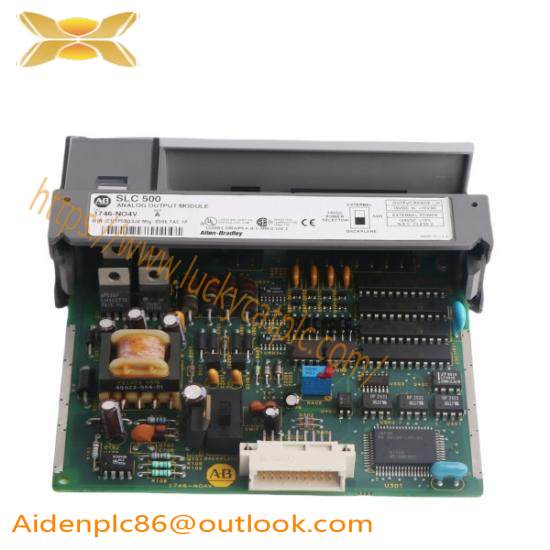

AB 1746-NO4V SLC500 Analog Output Module

In stock

The AB 1746-NO4V is an advanced analog output module designed for use with Allen Bradley’s SLC500 series of controllers. It provides precise control over four channels of analog signals, making it ideal for applications requiring high-resolution and reliable performance.

Model Type:SLC500

Model Number:1746-NO4V

Manufacturer:Allen Bradley

Number Of Channels:4 (Output)

Output Range:-10 to 10 VDC

Voltage Rating:220 VDC

Output Accuracy:±0.1% of Span

Response Time:<1 ms

Operating Temperature:-40°C to 85°C

Humidity Range:0 to 95%, non-condensing

The AB 1746-NO4V Analog Output Module is an essential component for any industrial control system requiring high precision and reliability. Designed by Allen Bradley, this module provides unparalleled accuracy and stability in controlling analog signals across four distinct channels. With a wide input voltage range from -20 to 20 V and a robust absolute input voltage rating of +/- 7.5 VDC or 7.5 VAC RMS, it ensures reliable operation even under extreme conditions. Each channel can handle an input range of -20 to 20 mA with an absolute input current of -30 to 30 mA (maximum). The output range of -10 to 10 V – 1 LSB offers precise control over your industrial processes. Overvoltage protection up to 7.5 VAC RMS ensures long-term reliability, while the backplane current draw of 55 mA minimizes energy consumption. This module is certified and compatible with various industrial environments, making it an indispensable tool for any automation setup.

A-B 1746-NO4V
