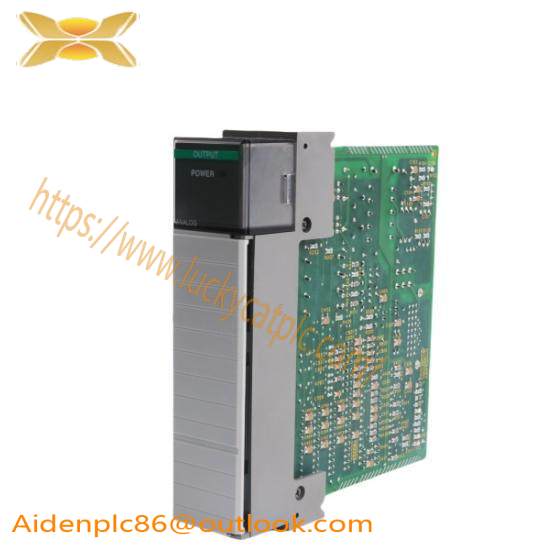

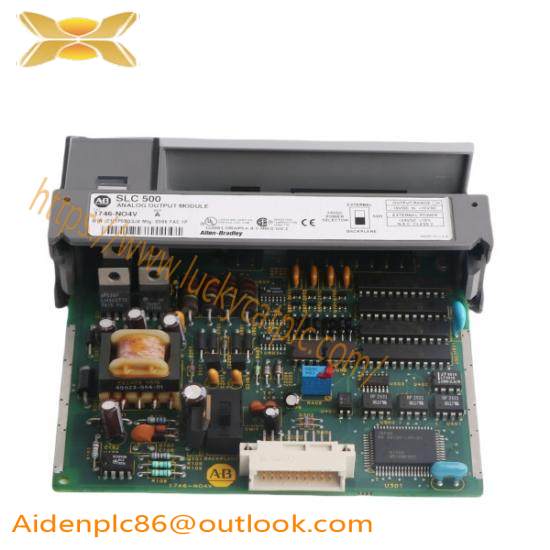

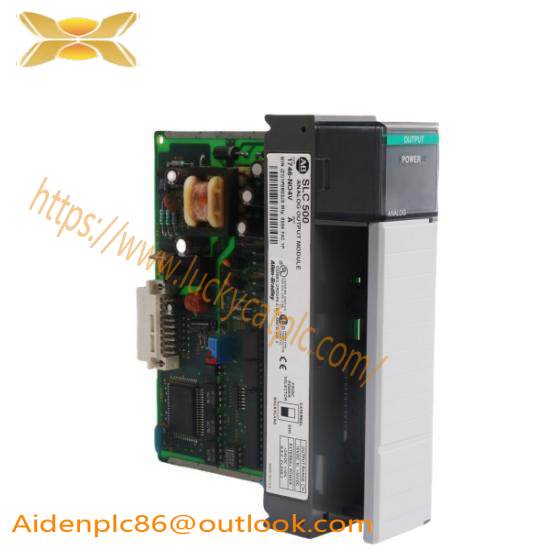

AB 1746-NO4V Analog Input Module for Industrial Control Systems

In stock

The AB 1746-NO4V is a high-performance analog output module designed for precise control applications within industrial automation systems. It enables the conversion of digital signals from Programmable Logic Controllers (PLCs) into analog voltages, facilitating the regulation of actuators and sensors in manufacturing processes.

Operating Voltage:220 V

Output Type:Analog

Number of Outputs:4

Current Range:4 mA to 20 mA

Supply Current:Max. 35 mA at 5 V, 85 mA at 24 V

Isolation Rating:500 VDC

Temperature Range:-40°C to +85°C

The AB 1746-NIO4 module is engineered with precision for high-resolution signal acquisition, ensuring reliable data capture from various industrial sensors.

It supports common mode voltage ranging from -20 to 20 volts, providing a wide dynamic range suitable for diverse industrial applications.

Featuring a maximum absolute input voltage of Plus/Minus 7.5 volts DC or AC RMS, it ensures robust performance under varying electrical conditions.

The module offers an input range of -20 to 20 milliamps (MA), making it versatile for measuring current signals from different types of sensors.

With overvoltage protection at 7.5 volts AC RMS, the 1746-NIO4 safeguards against transient spikes and ensures continuous operation.

Equipped with backplane current draw capabilities at 35 milliamps at 5 volts and 85 milliamps at 24 volts, it efficiently manages power consumption for optimal system performance.

1746-NO4V 1746N04V
